0-948-01 30m x 8.50mm² Black 60A Auto Single-core Cable
£68.57 Excl. VAT (£82.28 Inc. VAT)
RRP: £77.04 Excl. VAT
Initial Savings: £8.47
Earn 68 Loyalty Points
| |
Weight: 3.60 kg
Model: 0-948-01
Bar Code: 5056119133295
Part Number: 0-948-01
Brand: Durite
Colour: Black
Voltage: 12V/24V DC
Amperage: 60A
Material: Copper/PVC
Durite 60A Black standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- 8.50mm² (8AWG) Black.
- 60 Amps single-core automotive cable and vehicle wiring.
- 120 copper strands at 0.30mm.
- Outside diameter: 7.0mm.
- Manufactured to BS6862-1:1971.
- Roll length: 30m.
About the 0-948-01 8.50mm² Black PVC Electric Cable
Arc Components Limited presents the 0-948-01, Durite's medium to heavy-duty 60A Black automotive cable, ideal for your vehicle's connection to electrical equipment with a higher load requirement.

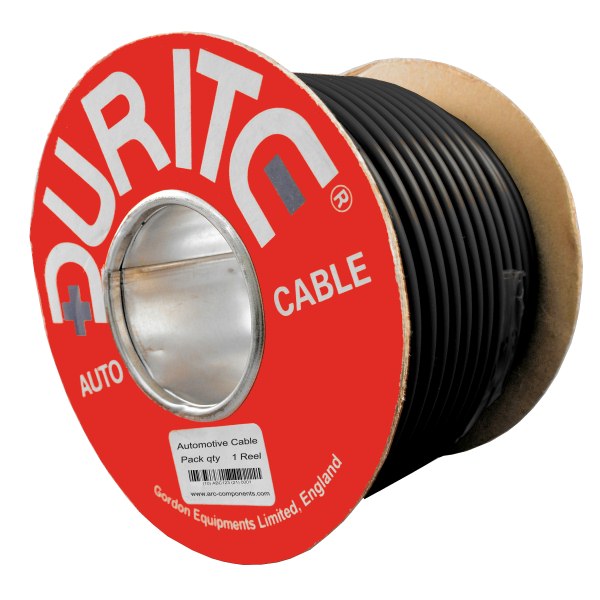

This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 8.5mm² (8 AWG) and features 120 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 7mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 60 Amps.
The Durite 0-948-01 is commonly used as a Negative (-) conductor wire on higher amperage 12V-24V electrical equipment and wiring looms.
Specifications
| Type | Single-core standard automotive wiring |
| Current Rating | 60.0 Amps |
| Insulation Colour | Black |
| Wire | 120/0.30mm copper |
| Cross-section | 8.50mm² (8 AWG) |
| Voltage | For 12 and 24 Volts DC systems (100 Volts DC Max.) |
| Resistance | 2.2mΩ/m at 20℃ |
| Insulation | Hard-grade PVC offers good resistance to abrasion and cut-through. |
| Overall Diameter | 7.0mm |
| Temperature | Minus 30 to +70℃ |
| Length of Cable | 30 Metres |
| Approvals | BS 6862-1:1971 |
| Weight | 3.6Kg |
