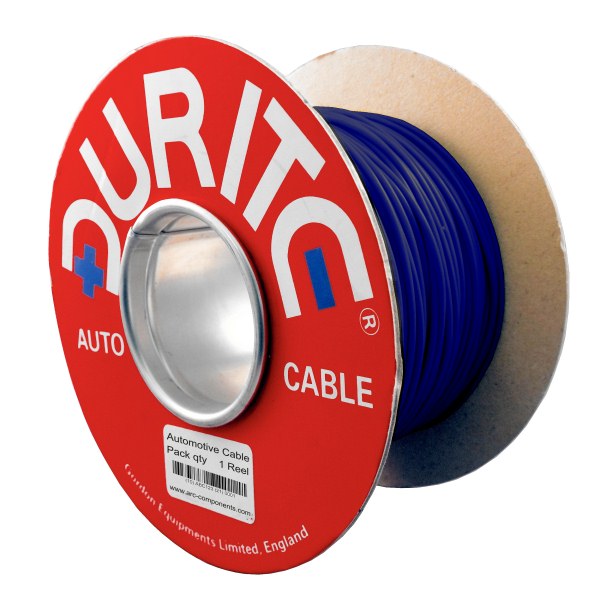

0-930-02 100m x 1.50mm˛ Blue 21A Single-core Thin Wall Auto Electric Cable

£39.02  Excl. VAT
  (£46.82 Inc. VAT)
RRP:  £43.84  Excl. VAT
Initial Savings:  £4.82
Earn 39 Loyalty Points
No stock


Weight:  1.65 kg





Model:  0-930-02
Bar Code:  5056119131277
Part Number:  0-930-02
Brand:  Durite
Colour:  Blue
Voltage:  12V/24V/36V/48V DC
Amperage:  21A
Material:  Copper/PVC


Durite Blue 21 Amps 1.5mm² single-core thin wall PVC sheathed auto electric cable.
  • 1.50mm² (15AWG) Blue.
  • 21A single-core automotive cable and vehicle wiring.
  • 21 copper strands at 0.30mm.
  • Outside diameter: 2.4mm.
  • Manufactured to ISO 6722-1:2011.
  • Roll length: 100m.

About the 0-930-02 1.50mm² Blue Thin Wall Electric Cable

 Arc Components Limited presents the 0-930-02, Durite's light-duty 21A Blue automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low/light load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.5mm² (15 AWG) and features 21 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.4mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 21 Amps.

 Used as a conductor on auto electrical equipment and wiring looms.

Specifications

Type Single-core thin wall cable
Current Rating 21 Amps
Insulation Colour Blue
Wire 21/0.30mm copper
Cross-section 1.5mm² (15 AWG)
Voltage 60 Volts DC Max.
Resistance 12.7mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   2.4mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 100 Metres
Approvals ISO6722-1:2011
Weight 1.65Kg
