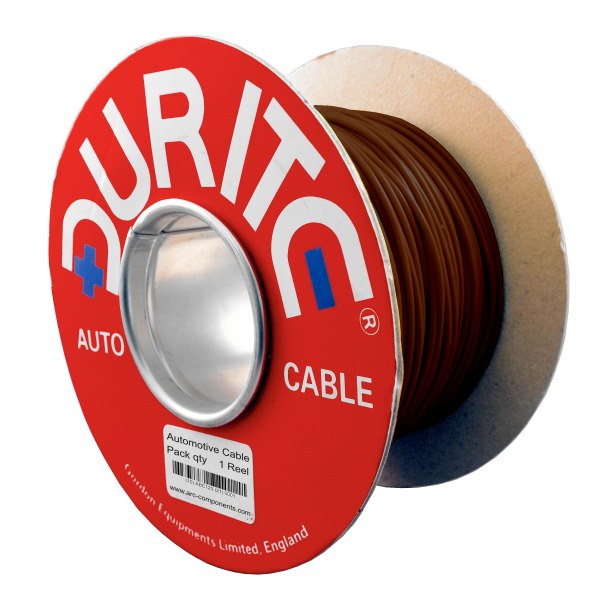

0-930-03 100m x 1.50mm˛ Brown 21A Single-core Thin Wall Auto Electric Cable

£38.96  Excl. VAT
  (£46.75 Inc. VAT)
RRP:  £43.78  Excl. VAT
Initial Savings:  £4.82
Earn 38 Loyalty Points
Available


Weight:  1.62 kg


Model:  0-930-03
Bar Code:  5056119131284
Part Number:  0-930-03
Brand:  Durite
Colour  Brown
Amperage  21A
Material  Copper/PVC


 Durite single-core PVC thin wall 21A automotive cable.

  • 1.50mm² brown.
  • 21A single-core electric cable.
  • 21 strands 0.30mm.
  • Outside diameter: 2.4mm.
  • To ISO 6722-1:2011.
  • Roll length 100m.

About The 1.5mm² Brown Thin Wall Electric Cable

 100 Metre reel of thin wall 21A brown cable. Used for light current loads, the 1.50mm² is ideal for vehicle wiring requiring a maximum load of 21 Amps continuous. Used as a conductor on auto electrical equipment and wiring looms.

Specifications

Type Single-core thin wall cable
Current Rating 21 Amps
Insulation Colour Brown
Wire 21/0.30mm copper
Cross Section 1.5mm²
Voltage 60 Volts DC maximum
Resistance 12.7mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   2.4mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 100 Metres
Approvals ISO6722-1:2011
Weight 1.65Kg
