0-930-05 100m x 1.50mm² Red 21A Single-core Thin Wall Auto Electric Cable
£39.02 Excl. VAT (£46.82 Inc. VAT)
£43.84 Excl. VAT
Initial Savings: £4.82
Earn 39 Loyalty Points
Weight: 1.65 kg
Bar Code: 5056119131307
Part Number: 0-930-05
Voltage: 12V/24V/36V/48V DC

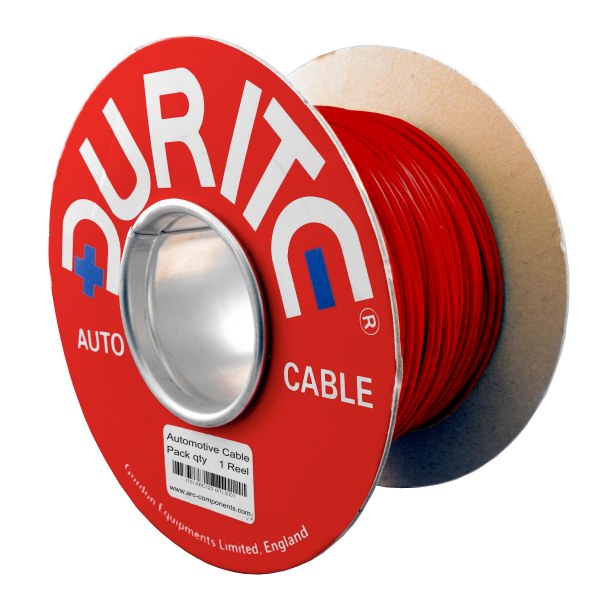

Durite Red 21 Amps 1.5mm² single-core thin wall PVC sheathed auto electric cable.
- 1.50mm² (15AWG) Red.
- 21A single-core automotive cable and vehicle wiring.
- 21 copper strands at 0.30mm.
- Outside diameter: 2.4mm.
- Manufactured to ISO 6722-1:2011.
- Roll length: 100m.
About the 0-930-05 1.50mm² Red Thin Wall Electric Cable
Arc Components Limited presents the 0-930-05, Durite's light-duty 21A Red automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low/light load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.5mm² (15 AWG) and features 21 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.4mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 21 Amps.
Used as a Positive (+) conductor on auto electrical equipment and wiring looms.
|Type ||Single-core thin wall cable |
|Current Rating ||21 Amps |
|Insulation Colour ||Red |
|Wire ||21/0.30mm copper |
|Cross-section ||1.5mm² (15 AWG) |
|Voltage ||60 Volts DC Max. |
|Resistance ||12.7mΩ/m at 20℃ |
|Insulation ||Hard-grade PVC offers good resistance to abrasion and cut-through. |
|Overall Diameter ||2.4mm |
|Temperature ||Minus 40 to +105℃ |
|Length of Cable ||100 Metres |
|Approvals ||ISO6722-1:2011 |
|Weight ||1.65Kg |
