SW60-37P Albright 12V DC IP66 Sealed Miniature Solenoid Intermittent 80A

£18.13  Excl. VAT
  (£21.76 Inc. VAT)
 Excl. VAT

Earn 18 Loyalty Points
4 in stock


Weight:  240 g


Model:  SW60-37P
Bar Code:  DNA
Part Number:  SW60-37P
Brand:  Albright
Colour  Black
Voltage  12V DC
Amperage  80A
Material  Copper/Silver/Bakelite
Coil type  Intermittent

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

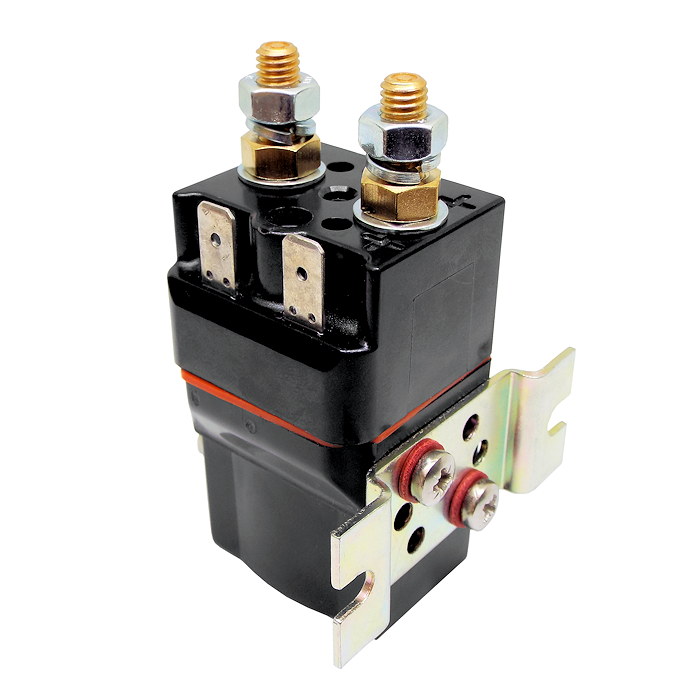

 Albright SW60-37P IP66 sealed 12Vdc miniature single-acting contactor with a top hat bracket, intermittent.

  • Albright SW60 series contactors are designed for a compact DC contactor application and used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • These contactors have closed contact housings and are sealed to inhibit the ingress of moisture or other contamination, used in environments that require protection to IP66.
  • All contactor builds are to very high standards and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.

Dimensions

  • Height, including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

About Intermittent (Int.) SW60 Solenoids

 Intermittent contactors, by design, are predominantly for hydraulic functions on vehicles; they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW60P features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60P incorporates an enclosed top cover and offers environmental protection to IP66. The SW60P has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via mounting brackets (supplied fitted).

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - ST
Voltage 12V D.C.
Coil Type Intermittent
Amps 80A
Coil Resistance (Ohms) 11
Pull-In Voltage (V) 7.0 Max.
Drop Out Voltage (V) 3.0 Max.
Coil Power Dissipation (W) 13.09
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
across New Contacts at 80A
< 40mV
Operating Ambient Temperature -40 to +60℃ (guide)
Protection IP66
Guideline Weight 210g
Application Uninterrupted
Thermal Current Rating 80A
Intermittent Current Rating:
30% Duty 145A
40% Duty 125A
50% Duty 115A
60% Duty 105A
70% Duty 95A
