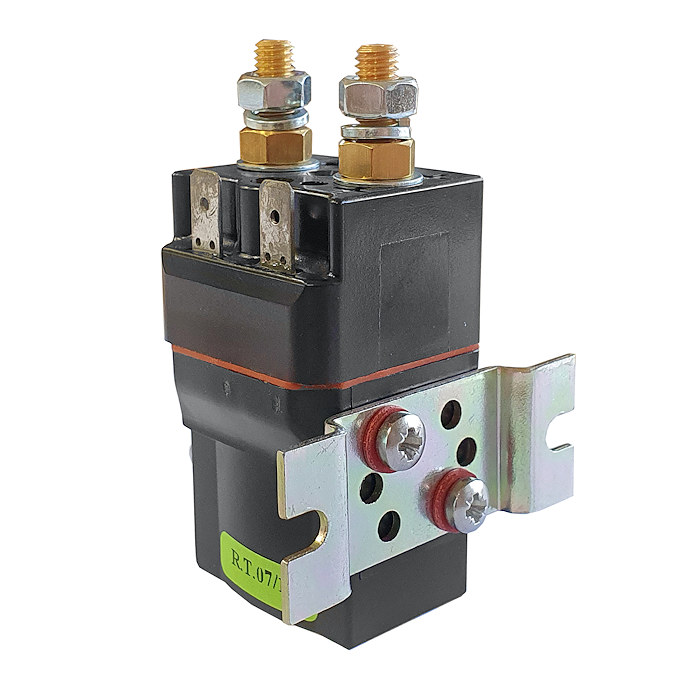

SW60-406P Albright 48V DC IP66 Sealed Miniature Solenoid Continuous 80A

£19.93  Excl. VAT
  (£23.92 Inc. VAT)
 Excl. VAT

Earn 19 Loyalty Points
3 in stock


Weight:  240 g





Model:  SW60-406P
Bar Code:  DNA
Part Number:  SW60-406P
Brand:  Albright
Colour:  Black
Voltage:  48V DC
Amperage:  80A
Material:  Copper/Silver/Bakelite
Coil type:  Continuous

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright SW60-406P series 48Vdc sealed miniature single-acting contactor with a top hat bracket, continuous.

  • Albright SW60 series contactors are designed for a compact DC contactor application and used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • These contactors have closed contact housings and are sealed to inhibit the ingress of moisture or other contamination, used in environments that require protection to IP66.
  • All contactor builds are to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.

Dimensions

  • Height including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

About Continuous (CO.) SW60 Solenoids

 Continuous contactors by design are predominantly for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW60P features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60P incorporates an enclosed top cover and offers environmental protection to IP66. The SW60P has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via mounting brackets (supplied fitted).

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST Contactor
Voltage 48V D.C.
Coil Type Continuous
Amps 80A
Coil Resistance (Ohms) 410
Pull-In Voltage (V) 32.0 Maximum
Drop Out Voltage (V) 12.0 Maximum
Coil Power Dissipation (W) 5.62
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
across New Contacts at 80A
Less than 40mV
Operating Ambient Temperature -40 to +60℃ (guide)
Protection IP66
Guideline Weight 210g
Application Uninterrupted
Thermal Current Rating 80A
Intermittent Current Rating:
30% Duty 145A
40% Duty 125A
50% Duty 115A
60% Duty 105A
70% Duty 95A
