SW60-631P Albright 60V DC IP66 Sealed Miniature Solenoid Continuous 80A

SW60-631P Albright 60V DC IP66 Sealed Miniature Solenoid Continuous 80A
SW60-631P Albright 60V DC IP66 Sealed Miniature Solenoid Continuous 80A
SW60-631P Albright 60V DC IP66 Sealed Miniature Solenoid Continuous 80A
SW60-631P Albright 60V DC IP66 Sealed Miniature Solenoid Continuous 80A
£23.36 Excl. VAT
(£28.03 Inc. VAT)
Earn 23 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
SW60-631P
Bar Code
DNA
Part Number
SW60-631P
Brand
Albright
Colour
Black
Voltage
60V DC
Amperage
80A
Material
Copper/Silver/Bakelite
Coil type
Continuous
IP Protection
IP66
Weight
240 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

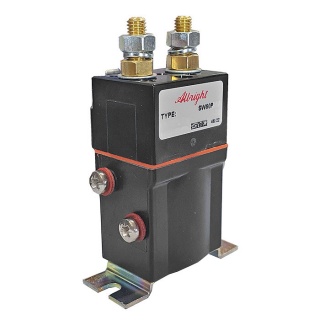

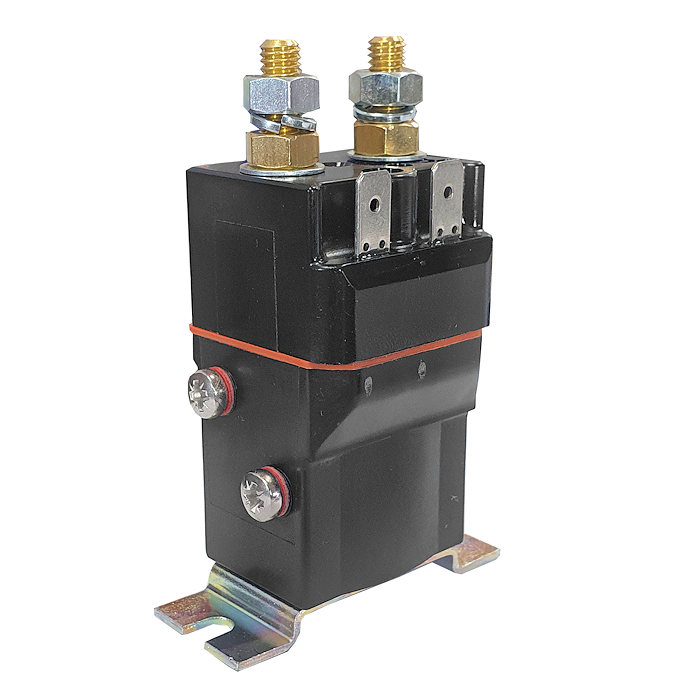

 Albright SW60-631P series 60Vdc IP66 sealed miniature single-acting contactor, with a top hat bracket fitted on the base, continuous.

  • Albright SW60 series contactors are designed for a compact DC contactor application and used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • These contactors have closed contact housings and are sealed to inhibit the ingress of moisture or other contamination, used in environments that require protection to IP66.
  • All contactor builds are to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.
  • Top hat bracket fitted.

About Continuous (CO.) SW60 Solenoids

 Continuous contactors, by design, are predominantly for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

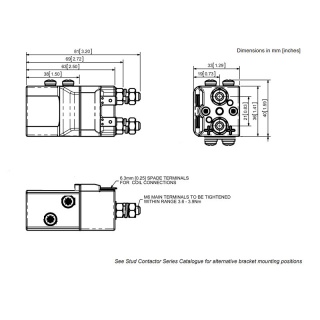

 The SW60P features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60P incorporates an enclosed top cover and offers environmental protection to IP66. The SW60P has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via mounting brackets (supplied fitted).

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

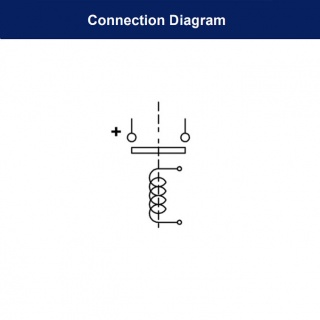

Device Type
NO - SP - ST
Voltage
60V D.C.
Coil Type
Continuous
Amps
80A
Coil Resistance (Ohms)
580
Pull In Voltage (V)
40.0 Max.
Drop Out Voltage (V)
15.0 Max.
Coil Power Dissipation (W)
6.21
Typical Pull-In Time
15ms
Typical Voltage Drop Per Pole
Across New Contacts At 80A
< 40mV
Operating Ambient Temperature
-40 to +60℃
Protection
IP66
Guideline Weight
198g
Application
Uninterrupted
Thermal Current Rating
80A
Intermittent Current Rating

30% Duty
145A
40% Duty
125A
50% Duty
115A
60% Duty
105A
70% Duty
95A
