SW60-281 Albright 12V DC Single-acting Miniature Solenoid Intermittent 80A

£18.13  Excl. VAT
  (£21.76 Inc. VAT)


Earn 18 Loyalty Points
12 in stock


Weight:  240 g


Model:  SW60-281
Bar Code:  DNA
Part Number:  SW60-281
Brand:  Albright
Colour:  black
Voltage:  12V DC
Amperage:  80A
Material:  Copper/Silver/Bakelite
Coil type:  Intermittent

Pre-order and back-ordering are available with a current 9 to 12 week lead time. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

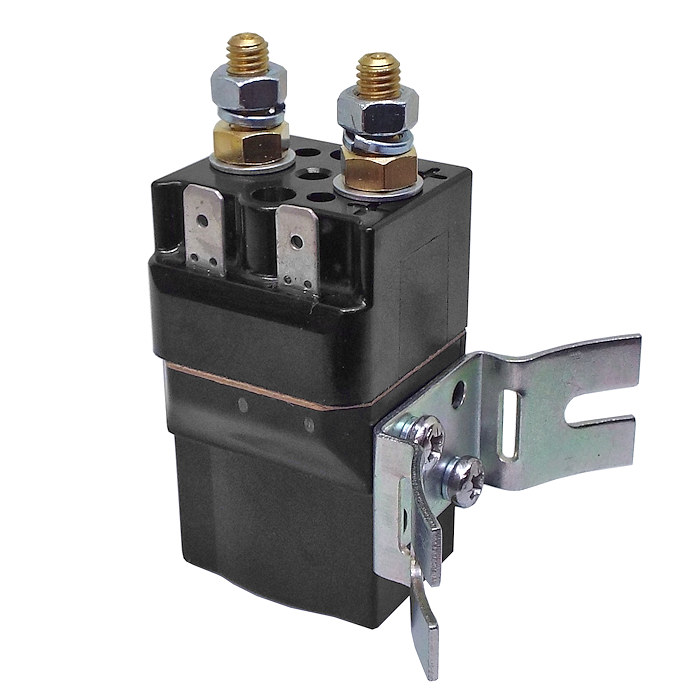

 Albright SW60-281 series miniature 12Vdc single-acting contactor with curved motor mounting bracket, intermittent.

  • Albright SW60 series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, silver alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.
  • Mounting bracket 2071-728 fitted.
  • Low duty cycle contactor - 25% maximum.
  • The bottom cover is fitted with no holes on the left-hand side and screws in the bottom.

Dimensions

  • Height including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

About Intermittent (Int.) SW60 Solenoids

 Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW60 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted current - opening and closing on load with frequent switching (results in increased contact resistance).
Uninterrupted current - no or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST Contactor
Voltage 12V D.C.
Coil Type Intermittent
Amps 80A
Coil Resistance (Ohms) 7
Pull-In Voltage (V) 7.0 Maximum
Drop Out Voltage (V) 3.0 Maximum
Coil Power Dissipation (W) 21.18
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
across New Contacts at 80A
Less than 40mV
Operating Ambient Temperature -40 to +60℃ (guide)
Guideline Weight 190g
Application Uninterrupted
Thermal Current Rating 80A
Intermittent Current Rating:
30% Duty 145A
40% Duty 125A
50% Duty 115A
60% Duty 105A
70% Duty 95A
