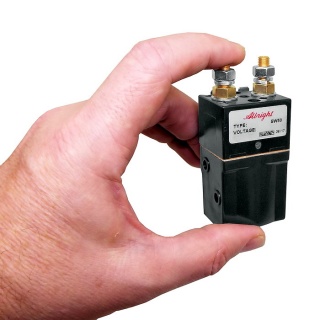

SW60-1 Albright 12V DC Single-acting Miniature Solenoid Intermittent 80A

SW60-1 Albright 12V DC Single-acting Miniature Solenoid Intermittent 80A
SW60-1 Albright 12V DC Single-acting Miniature Solenoid Intermittent 80A
SW60-1 Albright 12V DC Single-acting Miniature Solenoid Intermittent 80A
SW60-1 Albright 12V DC Single-acting Miniature Solenoid Intermittent 80A
£19.89 Excl. VAT
(£23.87 Inc. VAT)
Earn 19 Loyalty Points
(1 Review)

No stock

Model
SW60-1
Bar Code
DNA
Part Number
SW60-1
Brand
Albright
Colour
black
Voltage
12V DC
Amperage
80A
Material
Copper/Silver/Bakelite
Coil type
Intermittent
Weight
190 g

Pre-order and back-ordering is available for all Albright out-of-stock items, with a current 9 to 12 weeks despatch.
Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

 Albright SW60-1 series miniature 12Vdc single-acting contactor, intermittent.

  • Albright SW60 series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.

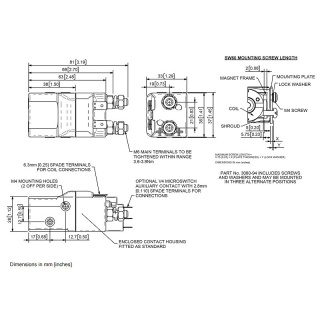

Dimensions

  • Height, including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

Associated Products

  • 3060-94 Standard "U" shaped mounting bracket.
  • 3060-340 Standard "DIN" rail mounting bracket.
  • 3060-382A Curved mounting bracket.
  • 2070-776 "U" shaped mounting bracket with extensions.

About Intermittent (Int.) SW60 Solenoids

 Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles; they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

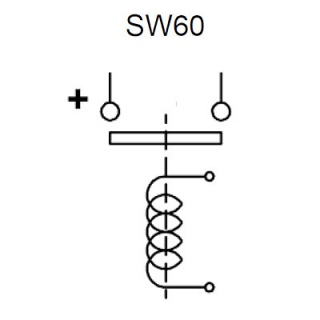

 The SW60 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type NO - SP - ST
Voltage 12V D.C.
Coil Type Intermittent
Amps 80A
Coil Resistance (Ohms) 11
Pull-In Voltage (V) 7.0 Max.
Drop Out Voltage (V) 3.0 Max.
Coil Power Dissipation (W) 13.09
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
across New Contacts at 80A		 < 40mV
Operating Ambient Temperature -40 to +60℃
Guideline Weight 190g
Application Uninterrupted
Thermal Current Rating 80A
Intermittent Current Rating:
30% Duty 145A
40% Duty 125A
50% Duty 115A
60% Duty 105A
70% Duty 95A
