SW60-331 Albright 12V DC Single-acting Solenoid - Very Intermittent 80A

SW60-331 Albright 12V DC Single-acting Solenoid - Very Intermittent 80A
SW60-331 Albright 12V DC Single-acting Solenoid - Very Intermittent 80A
SW60-331 Albright 12V DC Single-acting Solenoid - Very Intermittent 80A
SW60-331 Albright 12V DC Single-acting Solenoid - Very Intermittent 80A
£19.89 Excl. VAT
(£23.87 Inc. VAT)
Earn 19 Loyalty Points

Pre-order
Despatch: 9 to 12 Weeks
Model
SW60-331
Bar Code
DNA
Part Number
SW60-331
Brand
Albright
Colour
black
Voltage
12V DC
Amperage
80A
Material
Copper/Silver/Bakelite
Coil type
Very Intermittent
Weight
190 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of 9 to 12 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

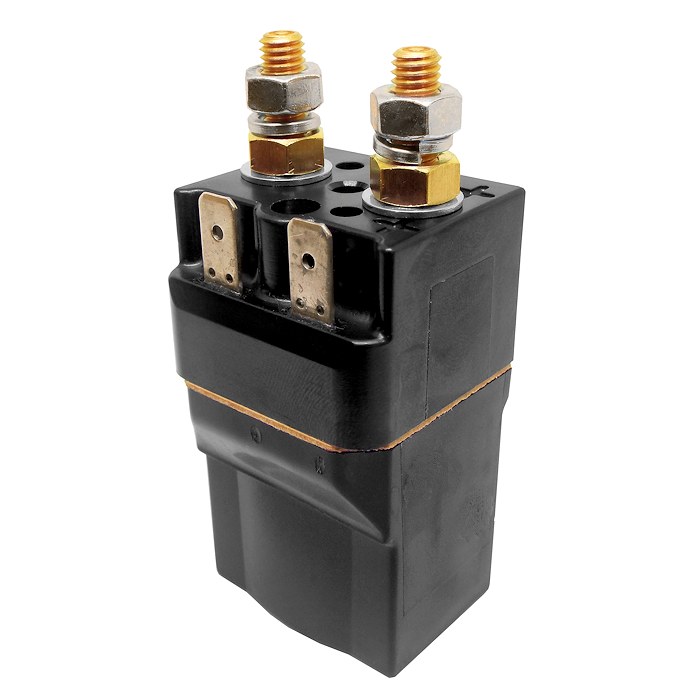

 Albright SW60-331 series sealed miniature 12Vdc single-acting contactor, very intermittent.

  • Albright SW60 series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.
  • No bracket fitted, mounted via the crew holes in the base, no screw holes in the side.
  • Very intermittent coil, Maximum 25% duty.

Dimensions

  • Height including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

Associated Products

  • 3060-94 Standard "U" shaped mounting bracket.
  • 3060-340 Standard "DIN" rail mounting bracket.
  • 3060-382A Curved mounting bracket.
  • 2070-776 "U" shaped mounting bracket with extensions.

About Intermittent (Int.) SW60 Solenoids

 Very Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break much quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW60 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST Contactor
Voltage 12V D.C.
Coil Type Very Intermittent
Amps 80A
Coil Resistance (Ohms) 6.8
Pull-In Voltage (V) 7.5 Maximum
Drop Out Voltage (V) 3.0 Maximum
Coil Power Dissipation (W) 21.18
Typical Pull-In Time 15ms
Typical Voltage Drop Per Pole
across New Contacts at 80A
Less than 40mV
Operating Ambient Temperature -40 to +60℃ (guide)
Guideline Weight 190g
Application Uninterrupted
Thermal Current Rating 80A
Intermittent Current Rating:
30% Duty 145A
40% Duty 125A
50% Duty 115A
60% Duty 105A
70% Duty 95A
