0-856-20 Durite Inverter Modified Wave 12VDC to 230VAC - 1000 watt

£218.88  Excl. VAT
  (£262.66 Inc. VAT)
RRP:  £250.00
Savings before Cart:  £31.12
Earn 218 Loyalty Points

Weight:  5.02 kg

Model:  0-856-20
Bar Code:  5056119130508
Part Number:  0-856-20
Brand:  Durite
Colour:  Red
Wattage:  1000W
Input Voltage:  12V DC
Output Voltage:  230V AC

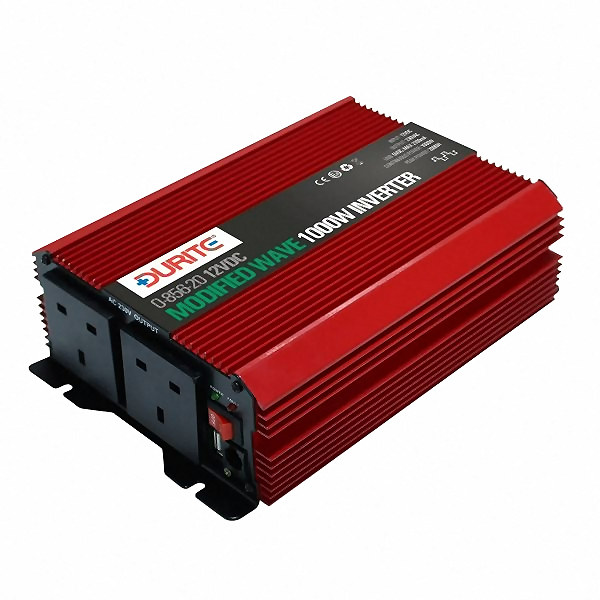

 Durite's double socket voltage inverter, modified wave 12 volts DC to 230 volts AC inverter for maximum 1000 watt continuous load.

  • 1000W 230 volts ac, dual socket modified wave inverter.
  • Input 11-15.5V DC to 230V AC 50Hz output.
  • Rated at 1000W continuous power output.
  • Protected against overload, over-temperature, low battery and short circuit with warning light.
  • Supplied with 2 x standard 3-pin BS1363 UK socket outlets.
  • ON-OFF remote switch with approximately 6 Metre cable.
  • E-marked, EMC, R10 approved.


Type Modified wave inverter
DC Input Voltage 13VDC (11VDC-15.5VDC)
AC Output Voltage 230VAC +/- 10%
Output Frequency 50Hz +/- 3Hz
USB Output DC 5V, Max 2100mA
Continuous Output Power 1000W
Surge Output Power 2000W
Output Sockets 2 x standard 3-pin BS1363 UK socket outlets
Efficiency 85% Maximum
Protection Overload, over-temperature, low battery and short circuit.
No Load Current Less than 0.35 amps
Input Under-voltage Alarm 10.2 to 10.8VDC
Input Under-voltage Shut Down 9.2 to 9.8VDC
Input Over-voltage Shut Down 15.5 to 16VDC
Alarm and Thermal Shut Down 60 +/- 5℃
Input 100% Load Current Draw 104 amps
Output 100% load current draw 4.35 amps
Operating Temperature 5 to 35℃
Cooling Method Fan assisted
Dimensions Length 238mm, Width 165mm and Height 69mm
Certification E-marked, EMC and R10 approved.
Weight 1.701Kg

Application Chart

  The application chart (shown below) is meant as a guide only, shown here for you to help assess whether the stated wattage (shown above) is suitable for your application, individual applications must be checked for their power requirements. Not all electronic products will work with a modified wave inverter, for example; laptop computers, battery chargers and fluorescent lighting, pure sine wave inverters are recommended for these sensitive electronic devices. If you are unsure of any of these factors, seeking out a Professional Auto Electrical Engineer for a 'First Time Installation' could actually save you money.

Equipment Guide 125W 250W 500W 1000W 1500W 2200W 2500W 3000W
Radio - Laptop - LED/LCD Television
Video - Fax Machine
Small Power Tool - 500W Halogen Lamp
Drill - Coffee Maker - Hair Dryer
Microwave Oven (600W +) - Kettle
Large Power Tools
Small Fridge - Freezer
Electric Heater - Sauna Stove
