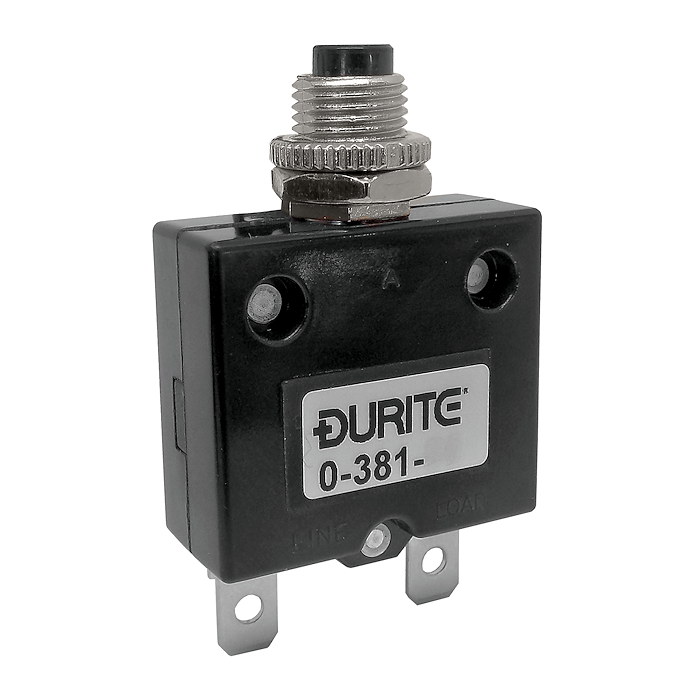

0-381-75 Durite 12V-24V Panel Mount Circuit breaker 25A

£3.93  Excl. VAT
  (£4.72 Inc. VAT)
RRP:  £4.74
Savings before Cart:  £0.81
Earn 3 Loyalty Points
Available

Weight:  40g


Model:  0-381-75
Bar Code:  5056119140545
Part Number:  0-381-75
Brand:  Durite
Colour:  Black
Voltage:  12V/24V DC
Amperage:  25A


 Durite's 12 volt or 24 volt dc 25 amp thermal circuit breakers.

  • A ‘push to reset’ single pole circuit breaker, based on snap-acting bimetallic thermal sensing element system.
  • Accurately sensing overload conditions and interrupting the flow of current.
  • The resettable actuator mechanism then remains disengaged until manually reset.
  • Current ratings 25A.
  • 6.3mm Lucar spade terminals.

Approximate Dimensions

  • Body length (including terminals and button): 60mm.
  • Body width: 35mm.
  • Depth: 15mm.

Associated Products

  • 0-381-99 Durite Circuit Breaker Dust Cap.

Specifications

Type Resettable Circuit Breaker
Amps 25A
Capacity 1000A
Resettable Overload Capacity 10 times rated current
Reset Time Minimum 1 minute
Dielectric Strength 1,500 Vac 1 minute
Insulation Resistance 100 MΩ
Temp. Rise at Terminal Block Less than 65°C (117°F)
Certifications CE, UL, VDE (up to 16 A)
Weight 30g
