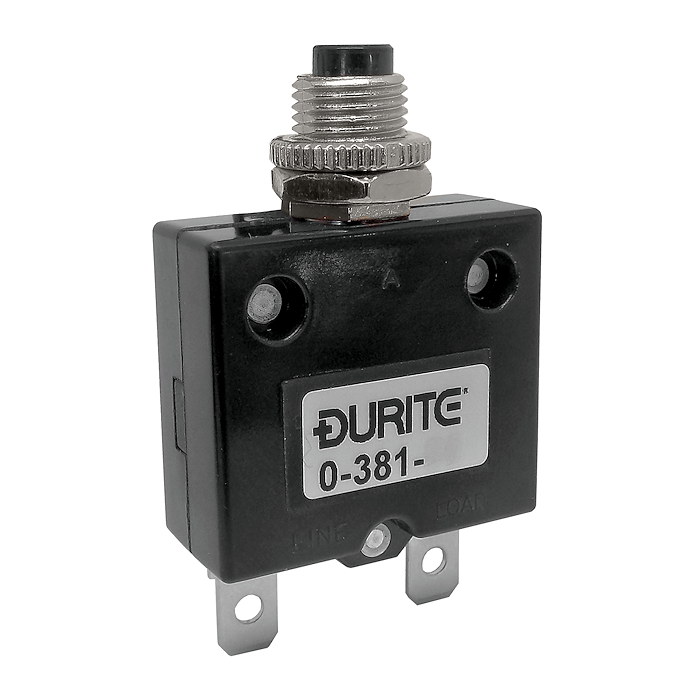

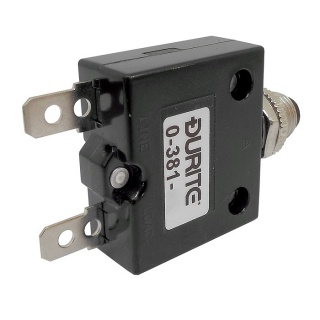

0-381-70 Durite 12V-24V Panel Mount Circuit breaker 20A

£5.14  Excl. VAT
  (£6.17 Inc. VAT)
RRP:  £5.78  Excl. VAT
Initial Savings:  £0.64
Earn 5 Loyalty Points
Available


Weight:  40 g


Model:  0-381-70
Bar Code:  5056119140538
Part Number:  0-381-70
Brand:  Durite
Colour  Black
Voltage  12V/24V DC
Amperage  20A
Material  Brass/Copper/Steel/Plastic


 Durite's 12 Volts or 24 Volts DC 20 Amps thermal circuit breakers.

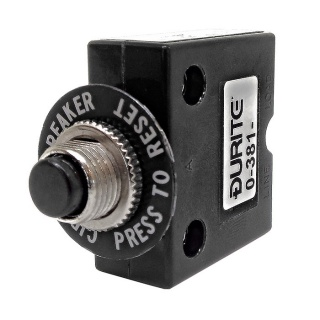

  • A push-to-reset single-pole circuit breaker based on a snap-acting bimetallic thermal sensing element system.
  • Accurately sensing overload conditions and interrupting the flow of current.
  • The resettable actuator mechanism then remains disengaged until manually reset.
  • Current rating: 20A.
  • 6.3mm Lucar spade terminals.
  • Pack Quantity: 1 piece.

Approximate Dimensions

  • Body length (including terminals and button): 60mm.
  • Body width: 35mm.
  • Depth: 15mm.

Associated Products

  • 0-381-99 Durite Circuit Breaker Dust Cap.

About the Durite 20A Panel Mount Circuit Breaker

 Durite's 0-381-70 12V-24V panel mount circuit breaker 20A protects electrical circuits from overloads. This single-pole circuit breaker is based on a snap-acting bimetallic thermal sensing element system that accurately senses overload conditions and interrupts the current flow. It is a practical and reliable surge protection option with a minimum 1-minute reset time and an insulation resistance of 100 MΩ. Moreover, it is certified CE, UL and VDE (up to 16 Amps), with a dielectric strength of 1,500 Vac for 1 minute and insulation resistance of 100 MΩ. It has 6.3mm Lucar spade terminals for connection, a current rating of 20 Amps, a thread of 3/8" - 24UNF and a temperature rise at the terminal block of less than 65°C (117°F). If you are looking for a reliable circuit breaker for your 12 or 24 Volts DC electrical systems, Durite's 0-381-70 panel mounted Circuit breaker is a perfect choice.

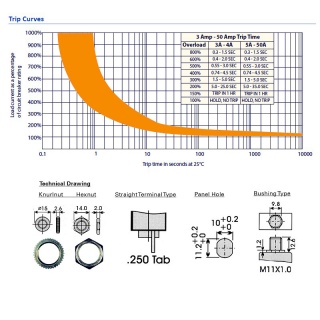

Specifications

Type T16 Resettable Circuit Breaker
Amps 20A
Capacity 1000A
Resettable Overload Capacity 10 times rated current
Reset Time Minimum 1 minute
Dielectric Strength 1,500 Vac 1 minute
Insulation Resistance 100 MΩ
Temp. Rise at Terminal Block Less than 65°C (117°F)
Thread C1 3/8" - 24UNF
Certifications CE, UL, VDE (up to 16 A)
Weight 30g
