0-930-04 100m x 1.50mm² Green 21A Single-core Thin Wall Auto Electric Cable
£38.96 Excl. VAT (£46.75 Inc. VAT)
RRP: £43.78 Excl. VAT
Initial Savings: £4.82
Earn 38 Loyalty Points
| |
Weight: 1.65 kg
Model: 0-930-04
Bar Code: 5056119131291
Part Number: 0-930-04
Brand: Durite
Colour: Green
Voltage: 12V/24V/36V/48V DC
Amperage: 21A
Material: Copper/PVC
Durite Green 21 Amps 1.5mm² single-core thin wall PVC sheathed auto electric cable.
- 1.50mm² (15AWG) Green.
- 21A single-core automotive cable and vehicle wiring.
- 21 copper strands at 0.30mm.
- Outside diameter: 2.4mm.
- Manufactured to ISO 6722-1:2011.
- Roll length: 100m.
About the 0-930-04 1.50mm² Green Thin Wall Electric Cable
Arc Components Limited presents the 0-930-04, Durite's light-duty 21A Green automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low/light load requirement.

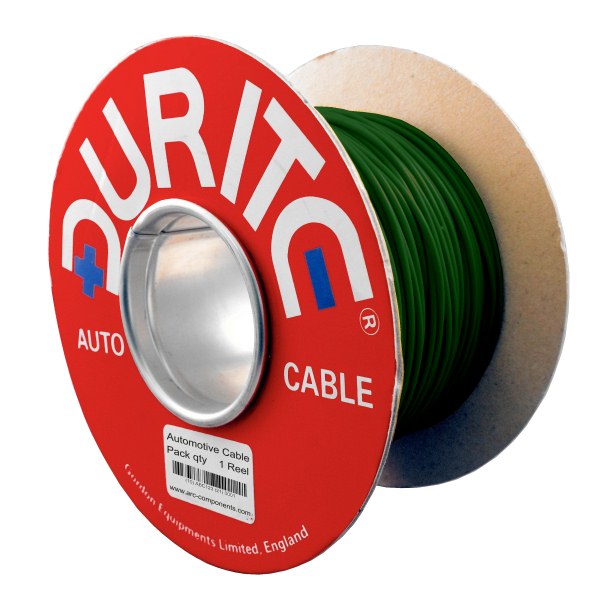

This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.5mm² (15 AWG) and features 21 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.4mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 21 Amps.
Used as a conductor on auto electrical equipment and wiring looms.
Specifications
| Type | Single-core thin wall cable |
| Current Rating | 21 Amps |
| Insulation Colour | Green |
| Wire | 21/0.30mm copper |
| Cross-section | 1.5mm² (15 AWG) |
| Voltage | 60 Volts DC Max. |
| Resistance | 12.7mΩ/m at 20℃ |
| Insulation | Hard-grade PVC offers good resistance to abrasion and cut-through. |
| Overall Diameter | 2.4mm |
| Temperature | Minus 40 to +105℃
(120℃ intermittent) |
| Length of Cable | 100 Metres |
| Approvals | ISO6722-1:2011 |
| Weight | 1.65Kg |
