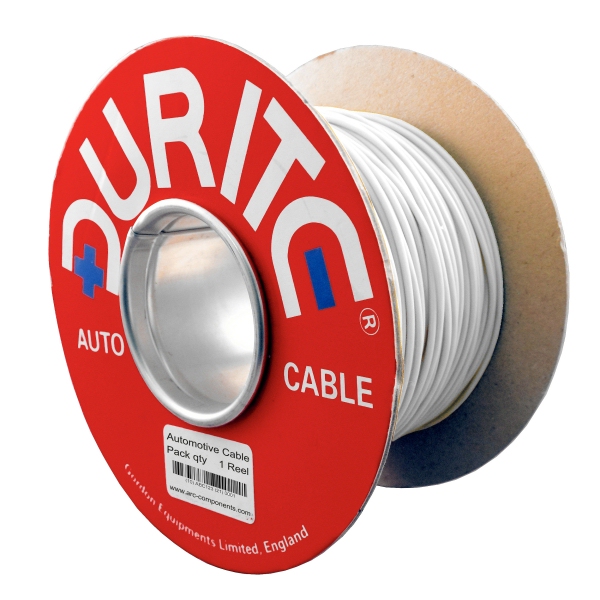

0-931-07 100m x 0.75mm² White 14A Single-core Thin Wall Auto Electric Cable

0-931-07 100m x 0.75mm² White 14A Single-core Thin Wall Auto Electric Cable
0-931-07 100m x 0.75mm² White 14A Single-core Thin Wall Auto Electric Cable
£23.65 Excl. VAT
RRP £27.70 Excl. VAT
Initial Savings
£4.05
(£28.38 Inc. VAT)
Earn 23 Loyalty Points

Available
Model
0-931-07
Bar Code
5056119131420
Part Number
0-931-07
Brand
Durite
Colour
White
Voltage
12V/24V/36V/48V DC
Amperage
14A
Material
Copper/PVC
Weight
920 g


 Durite 14A White automotive "Thin Wall" cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 0.75mm² (19 AWG) White.
  • 14 Amps single-core automotive cable and vehicle wiring.
  • 24 copper strands at 0.20mm.
  • Outside diameter: 1.9mm.
  • Manufactured to ISO 6722-1:2011.
  • Roll length: 100 Metres.

About the 0-931-07 0.75mm² White Thin Wall Electric Cable

 Arc Components Limited presents the 0-931-07, Durite light-duty 14A White automotive "Thin Wall" cable, ideal for your vehicles connection to electrical equipment with a low load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 0.75mm² (19 AWG) and features 24 strands of 0.20mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 1.9mm. It meets all necessary standards for domestic and commercial vehicles electrical equipment wiring, including ISO6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 14 Amps.

 The Durite 0-931-07 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type
Single-core thin wall cable
Current Rating
14 Amps
Insulation Colour
White
Wire
24/0.20mm copper
Cross-section
0.75mm² (19AWG)
Voltage
60 Volts DC Max.
Resistance
24.7mΩ/m at 20℃
Insulation
Hard-grade PVC, which offers good resistance to abrasion and cut-through.
Overall Diameter
1.9mm
Temperature
Minus 40 to +105℃ (120℃ intermittent)
Length of Cable
100 Metres
Approvals
ISO6722-1:2011
Weight
920g
