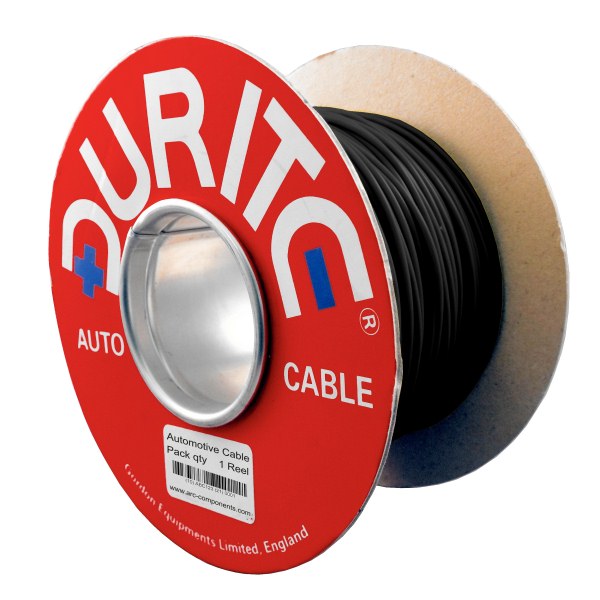

0-931-01 100m x 0.75mm˛ Black 14A Single Core Thin Wall Auto Electric Cable

£17.83  Excl. VAT
  (£21.40 Inc. VAT)
RRP:  £21.48
Savings before Cart:  £3.65
Earn 17 Loyalty Points
Available


Weight:  920g


Model:  0-931-01
Bar Code:  5056119131369
Part Number:  0-931-01
Brand:  Durite
Colour:  Black
Amperage:  14A
Material:  Copper/PVC


 Single core, thin wall automotive black PVC sheathed electric cable.

  • Length: 100m.
  • 0.75mm² black.
  • 14A automotive single core electric cable.
  • 24 strand 0.20mm.

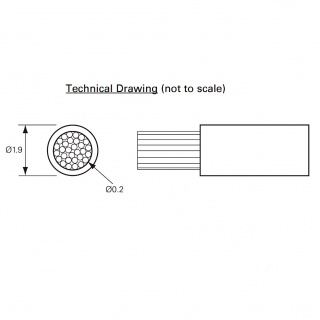

  • Outside diameter: 1.9mm.
  • To ISO 6722-1:2011.

About the .75mm² Black Thin Wall Electric Cable

 100 Metre rolls of thin wall light duty 14A black cable. Used for light current loads the .75mm² is ideal for vehicle wiring requiring a maximum load of 14 amps continuous. Used as a negative conductor on auto electrical equipment and wiring looms.

Specifications

Type Single core thin wall cable
Current Rating 14 amp
Insulation colour Black
Wire 24/0.20mm copper
Cross section 0.75mm²
Voltage 60 volt DC maximum
Resistance 24.7mΩ/m at 20℃
Insulation Hard grade PVC offering good resistance to abrasion and cut through.
Overall diameter   1.9mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of cable 100 Metres
Approvals ISO6722-1:2011
Weight 920g
