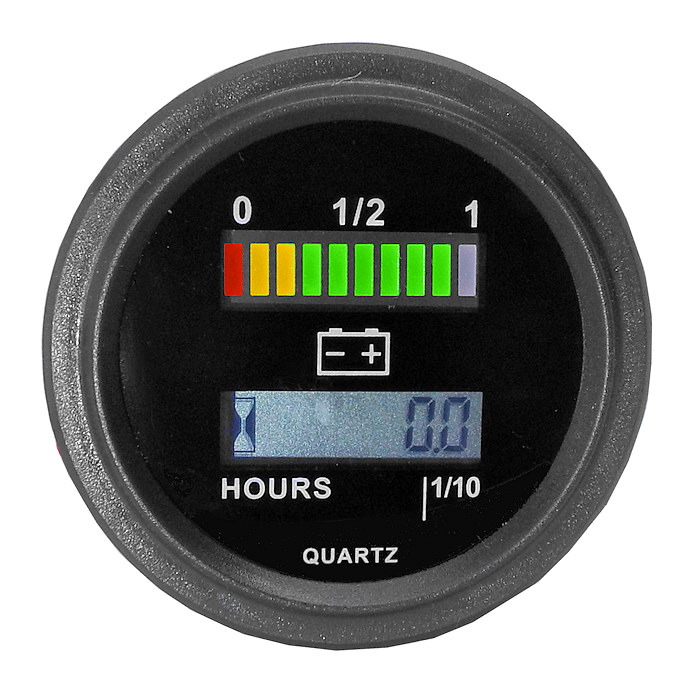

0-523-18 Durite 12-72V LCD Hour Meter and Battery State Indicator - 52mm
Weight: 30 g
Model: 0-523-18
Bar Code: 5056119157536
Part Number: 0-523-18
Brand: Durite
Colour Grey
Voltage 12V to 72V DC
Material Metal/Copper/Brass/Plastic
Durite multi-voltage 12V-72V combined battery discharge indicator and hour meter.
- Ideal for 12V, 24V, 36V, 48V and 72Vdc monitoring.
- Battery discharge indicator (BDI) in seven Green, two Yellow and one Red LCD segments depending on the state.
- Optimum 52mm panel hole required.
- 4 x 4.8mm brass terminals and clear PVC sleeves are supplied for the connection.
Approximate Dimensions
- Length (Including terminals): 49mm
- Face diameter: 60mm
- Body width: 43mm
Operation Of The Hour Meter
- Hourglass symbol flashes on/off to indicate time counting.
- The hourglass symbol flashes on/off to indicate time counting.
- When the key switch turns off, the hour icon stops, flashes and counts hours.
- Hour meter display 0.1 hour resolution range from O.O to 99999.9 hours, the 1 hour resolution range from 100000 to 999999 hours.
- Reset The Hour Meter
- Connect the "-" and the "R" pin fast simultaneously, until the hour meter LCD screen display shows "0 0".
- Release the "-" and the "R" pin connect, and then the hour meter reset finishes.
Specifications
| Type | Combined battery and hour meter |
| System Voltage | 12/24Vdc, 36Vdc, 48/72Vdc |
| BDI LED Indicator | 1 x Red, 2 x Yellow and 7 x Green |
| Operating Voltage | ± 25% of nominal voltage |
| Operating Current | Less than 20 mA nominal |
| Operation Temperature | -40˚C to +85˚C |
| Storage Temperature | -40˚C to +85˚C |
| Applicable Battery | Lead-acid Battery (depending on model) |
| Product Size | Ø60mm x 49mm |
| Terminals | 4.8mm Brass |
