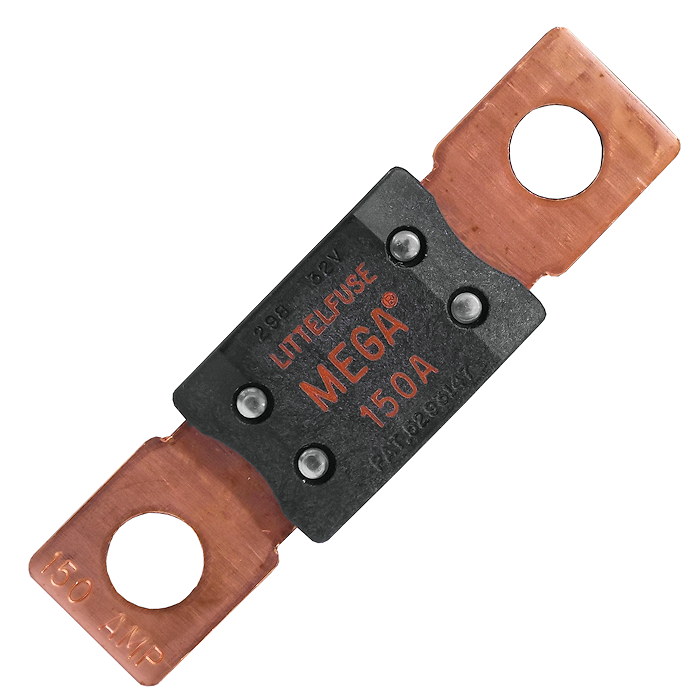

0-376-15 Orange MEGA Type Fuse 150A
Weight: 20 g
Bar Code: 5056119110456
Part Number: 0-376-15
Voltage: 32V DC Max.
Material: Copper/Polyphthalamide (PPA)
Durite OEM quality Orange coloured MEGA type link fuses. The 150 Amps heavy-duty fuse is used for circuit protection when high loads and heavy gauge automotive cables are used.
- Colour-coded: Orange.
- Continuous Rating: 150A
- Blow Rating: 300A
- Interrupting Rating: 2000A at 32Vdc.
- Voltage Rating: 32Vdc.
- Operating Temperature Range: -40 to 125℃.
- Mounting Torque: 12-18Nm M8.
- Pack Quantity: 1 piece
- Length: 68.50mm.
- Body Width: 19.00mm.
- M8 Hole Centres: 50.8mm.
- 0-376-85 Mega fuse holder.
- 0-376-86 compact Mega fuse holder.
About the 150 Amps MEGA Type Fuses
150A Orange bolt-down MEGA type fuse from the Durite range of automotive fuses, ideal for battery and alternator protection on vehicles and industrial equipment.
The 150A continuous rating gives high current circuit protection on auto electric equipment close to the battery source, including heavy gauge automotive cables and vehicle wiring on a circuit that is passing current (always on). The 300A blow rating is for intermittent circuits where the copper fuse requires to heat up from cold before blowing.
|Type ||MEGA type fuse |
|Voltage ||To 32 Volts DC |
|Voltage Drop ||Less than 92mV |
|Interrupting Rating ||2000 Amps at 32 Volts DC |
|Colour Code ||Orange |
|Current Rating ||150 Amps - Continuous |
|Blow Rating (from cold) ||300 Amps - Intermittent |
|Body Material ||Plastic |
|Termination ||Copper |
|Operating Temperature ||-40 to +125℃ (current rating decreases with increased temperature to 92% at 120℃) |
|Weight ||15g |
