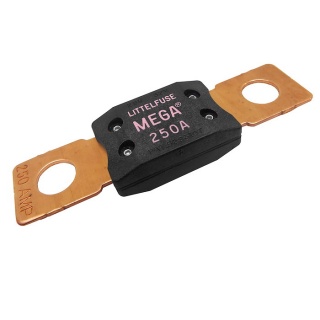

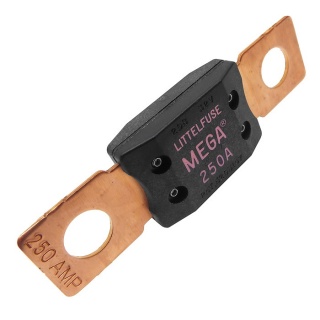

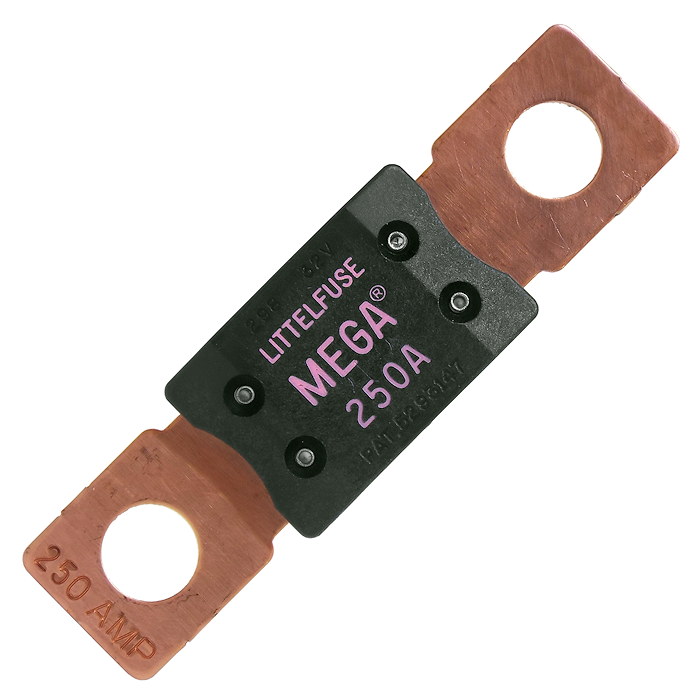

0-376-25 Pink MEGA Type Fuse 250A

£5.62  Excl. VAT
  (£6.74 Inc. VAT)
RRP:  £6.32  Excl. VAT
Initial Savings:  £0.70
Earn 5 Loyalty Points
Available


Weight:  20 g





Model:  0-376-25
Bar Code:  5056119110494
Part Number:  0-376-25
Brand:  Durite
Colour:  Pink
Voltage:  12V/24V DC
Amperage:  250A
Material:  Copper/Polyphthalamide (PPA)


 Durite 12V-24Vdc OEM quality Pink coloured MEGA type link fuses. The 250 Amps heavy-duty fuse is used for circuit and surge protection when high loads and heavy gauge automotive cables are used.

  • Colour-coded: Pink.
  • Continuous Rating: 250A
  • Blow Rating: 500A
  • Interrupting Rating: 2000A at 32Vdc.
  • Voltage Rating: 12 or 24 Volts DC (32 Volts DC Maximum).
  • Operating Temperature Range: -40 to 125℃.
  • Mounting Torque: 12-18Nm M8.
  • Pack Quantity: 1 piece.

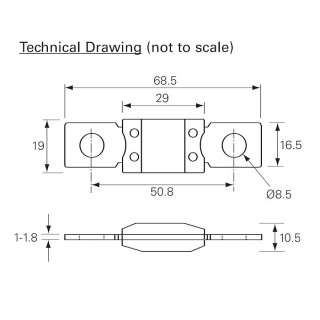

Dimensions

  • Length: 68.50mm.
  • Body Width: 19.00mm.
  • M8 Hole Centres: 50.8mm.

Associated Parts

  • 0-376-85 MEGA fuse holder.
  • 0-376-86 compact MEGA fuse holder.

About the 250 Amps MEGA Type Fuses

 The Durite 0-376-25 Pink bolt-down MEGA type fuse is a heavy-duty 250 Amps fuse designed to provide reliable circuit protection when high loads and heavy gauge automotive cables are used. This fuse is rated for 12 to 24 Volts DC with an interrupting rating of 2000A at 32Vdc, a continuous rating of 250A and a blow rating of 500A. This fuse is robust and reliable, perfect for battery and alternator protection for road vehicles, agricultural, material handling and industrial equipment. Durite is a trusted brand in automotive fuses, and the 0-376-25 Pink MEGA type fuse will provide you with all the protection you need.

 The 250 Amps continuous rating gives high current circuit protection on auto electric equipment close to the battery source, including heavy gauge automotive cables and vehicle wiring on a circuit that is passing current (always on). The 500 Amps blow rating is for intermittent circuits where the copper fuse requires to heat up from cold before blowing.

Specifications

Type MEGA type fuse
Voltage 12-24 Volts DC (32 Volts DC Max.)
Voltage Drop Less than 92mV
Interrupting Rating 2000 Amps at 32 Volts DC
Colour Code Pink
Current Rating 250 Amps - Continuous
Blow Rating (from cold) 500 Amps - Intermittent
Body Material Plastic
Termination Copper
Operating Temperature -40 to +125℃ (current rating decreases with increased temperature to 92% at 120℃)
Weight 15g




Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

MEGA Fuse Holder for the MEGA Range of Fuses | Re: 0-376-85
MEGA Fuse Holder for the MEGA Range of Fuses | Re: 0-376-85

Durite Black MEGA type fuse holder. Side stackable carrier for the Littelfuse Mega range of fuses with M8 studs.


Available
 Reference: 0-376-85 From:  £9.18
SU80-5050P Albright Single-acting 24V 150A Contactor - Continuous IP66
SU80-5050P Albright Single-acting 24V 150A Contactor - Continuous IP66

SU80-5050P single-acting solenoid contactor, 24Vdc continuous. Sealed 150A SPST 24 Volts solenoid to IP66.


3 in stock
 Reference: SU80-5050P £44.77


Related Products
0-366-25 Durite Aftermarket Pink MEGA Type Fuse - 250A
0-366-25 Durite Aftermarket Pink MEGA Type Fuse - 250A

Standard aftermarket Pink MEGA type fuse for heavy-duty application. Fuse rating of 250 Amps for continuous use.


Available
 Reference: 0-366-25 £3.80   £3.38

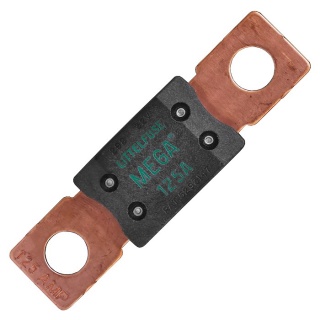

0-376-12 Green MEGA Type Fuse 125A
0-376-12 Green MEGA Type Fuse 125A

Standard Green MEGA style fuse for heavy-duty application. Fuse rating of 125A for continuous use, blow rating 250A.


Available
 Reference: 0-376-12 £6.04   £5.38

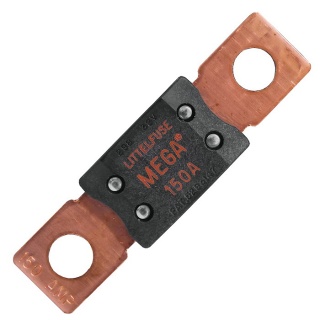

0-376-15 Orange MEGA Type Fuse 150A
0-376-15 Orange MEGA Type Fuse 150A

Standard Orange MEGA style fuse for heavy-duty application. Fuse rating of 150A for continuous use, blow rating 300A.


Available
 Reference: 0-376-15 £6.04   £5.38

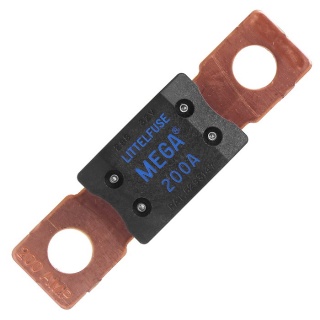

0-376-20 Blue MEGA Type Fuse 200A
0-376-20 Blue MEGA Type Fuse 200A

Standard Blue MEGA style fuse for heavy-duty application. Fuse rating of 200A for continuous use, blow rating 400A.


Available
 Reference: 0-376-20 £6.32   £5.62

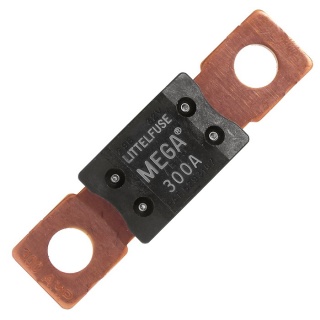

0-376-30 Grey MEGA Type Fuse 300A
0-376-30 Grey MEGA Type Fuse 300A

Standard Grey MEGA style fuse for heavy-duty application. Fuse rating of 300A for continuous use, blow rating 600A.


Available
 Reference: 0-376-30 £7.44   £6.62

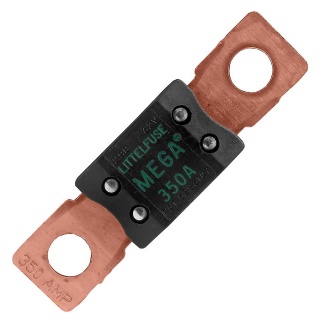

0-376-35 Dark Green MEGA Type Fuse 350A
