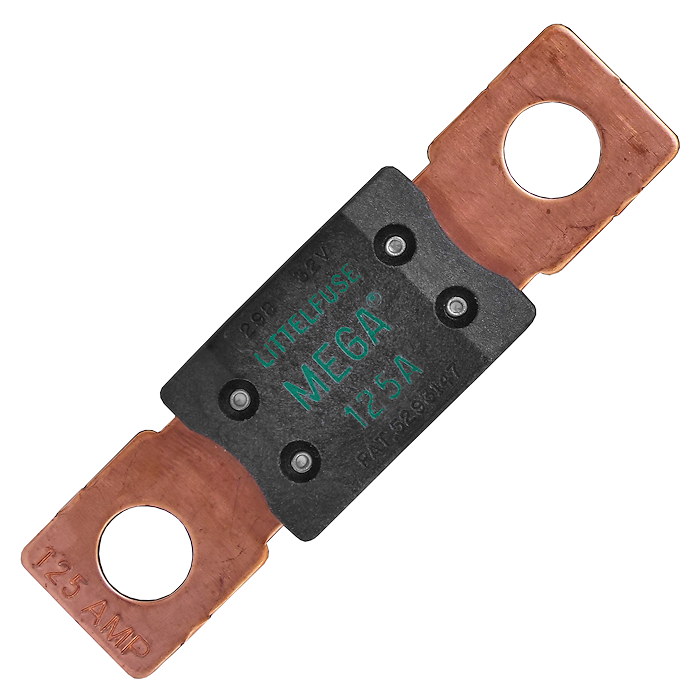

0-376-12 Green Mega Type Fuse 125A

£4.82  Excl. VAT
  (£5.78 Inc. VAT)
RRP:  £5.53
Savings before Cart:  £0.71
Earn 4 Loyalty Points
Available


Weight:  20 g


Model:  0-376-12
Bar Code:  5056119110449
Part Number:  0-376-12
Brand:  Durite
Colour:  Green
Voltage:  32V DC Max.
Amperage:  125A
Material:  Copper/Polyphthalamide (PPA)


 Industry-standard and OEM quality 125 amp green Mega type fuse, used for heavy-duty circuit protection when high loads and heavy gauge automotive cables are used.

  • Colour Coded: Green.
  • Fuse Rating: 125A continuous use.
  • Blow Rating: 250A.
  • Interrupting Rating: 2000A at 32Vdc.
  • Voltage Rating: 32Vdc.
  • Operating Temperature Range: -40 to 125℃.
  • Mounting Torque: 12-18Nm M8.

Dimensions

  • Length: 68.50mm.
  • Body Width: 19.00mm.
  • M8 Hole Centres: 50.8mm.

Associated Parts

  • 0-376-85 Mega fuse holder.
  • 0-376-86 compact Mega fuse holder.

About the 125 Amp Mega Type Fuses

 125A green bolt down Mega type fuse from the Durite range of automotive fuses, ideal for battery and alternator protection on vehicles and industrial equipment.

 The 125A continuous rating gives high current circuit protection on auto electric equipment connected close to the battery source, including heavy gauge automotive cables and vehicle wiring on a circuit that is passing current (always on). The 250A blow rating is for intermittent circuits where the copper fuse requires to heat up from cold before blowing.

Specifications

Type Mega type fuse
Voltage To 32 Volts DC
Voltage drop Less than 92mV
Interrupting rating 2000 amp at 32 Volts DC
Colour code Green
Current rating 125 amp continuous
Blow rating (from cold) 250 amp intermittent
Body Material Plastic
Termination Copper
Operating temperature -40 to +125℃ (current rating decreases with increased temperature to 92% at 120℃)
Weight 15g
