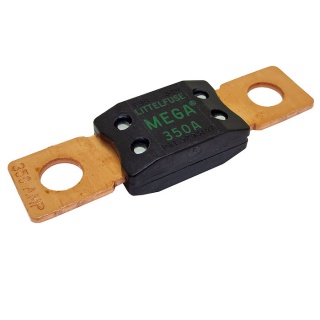

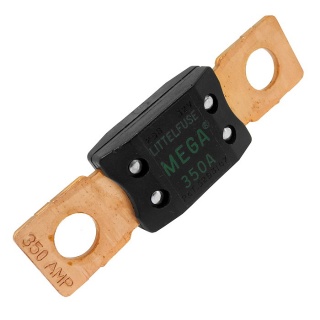

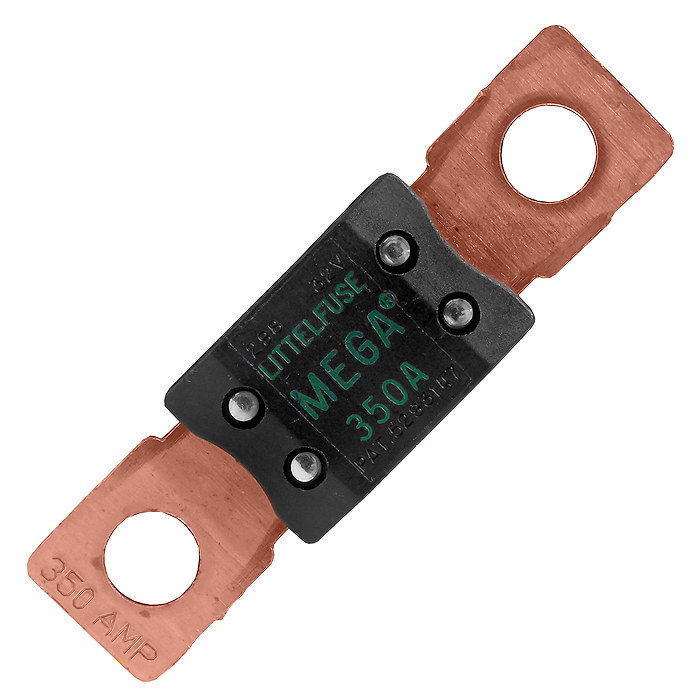

0-376-35 Dark Green MEGA Type Fuse 350A

£6.62  Excl. VAT
  (£7.94 Inc. VAT)
RRP:  £7.44  Excl. VAT
Initial Savings:  £0.82
Earn 6 Loyalty Points
Available


Weight:  20 g


Model:  0-376-35
Bar Code:  5056119110517
Part Number:  0-376-35
Brand:  Durite
Colour  Dark Green
Voltage  12V/24V DC
Amperage  350A
Material  Copper/Polyphthalamide (PPA)


 Durite 12V-24Vdc OEM quality Dark Green coloured MEGA type link fuses. The 350 Amps heavy-duty fuse is used for circuit and surge protection when high loads and heavy gauge automotive cables are used.

  • Colour Coded: Dark Green.
  • Continuous Rating: 350A
  • Blow Rating: 700A
  • Interrupting Rating: 2000A at 32Vdc.
  • Voltage Rating: 12 or 24 Volts DC (32 Volts DC Maximum).
  • Operating Temperature Range: -40 to 125℃.
  • Mounting Torque: 12-18Nm M8.
  • Pack Quantity: 1 piece.

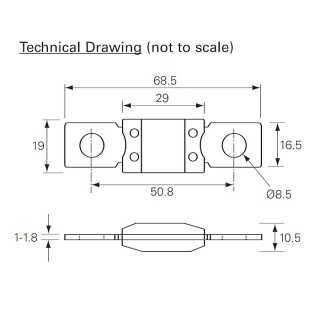

Dimensions

  • Length: 68.50mm.
  • Body Width: 19.00mm.
  • M8 Hole Centres: 50.8mm.

Associated Parts

  • 0-376-85 MEGA fuse holder.
  • 0-376-86 compact MEGA fuse holder.

About the 350 Amps MEGA Type Fuses

 The Durite 0-376-35 Dark Green bolt-down MEGA type fuse is a heavy-duty 350 Amps fuse designed to provide reliable circuit protection when high loads and heavy gauge automotive cables are used. This fuse is rated for 12 to 24 Volts DC with an interrupting rating of 2000A at 32Vdc, a continuous rating of 350A and a blow rating of 700A. This fuse is robust and reliable, perfect for battery and alternator protection for road vehicles, agricultural, material handling and industrial equipment. Durite is a trusted brand in automotive fuses, and the 0-376-35 Dark Green MEGA type fuse will provide you with all the protection you need.

 The 350 Amps continuous rating gives high current circuit protection on auto electric equipment close to the battery source, including heavy gauge automotive cables and vehicle wiring on a circuit that is passing current (always on). The 700 Amps blow rating is for intermittent circuits where the copper fuse requires to heat up from cold before blowing.

Specifications

Type MEGA type fuse
Voltage 12-24 Volts DC (32 Volts DC Max.)
Voltage Drop Less than 92mV
Interrupting Rating 2000 Amps at 32 Volts DC
Colour Code Dark Green
Current Rating 350 Amps - Continuous
Blow Rating (from cold) 700 Amps - Intermittent
Body Material Plastic
Termination Copper
Operating Temperature -40 to +125℃ (current rating decreases with increased temperature to 92% at 120℃)
Weight 15g
