SU80-5050P Albright Single-acting 24V 150A Contactor - Continuous IP66

£44.77  Excl. VAT
  (£53.72 Inc. VAT)
 Excl. VAT

Earn 44 Loyalty Points
6 in stock


Weight:  350 g


Model:  SU80-5050P
Bar Code:  DNA
Part Number:  SU80-5050P
Brand:  Albright
Colour  Black
Voltage  24V DC
Amperage  150A
Material  Copper/Silver/Bakelite/Steel
Coil type  Continuous

Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

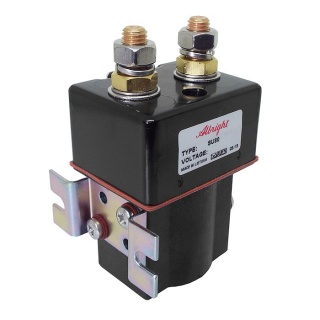

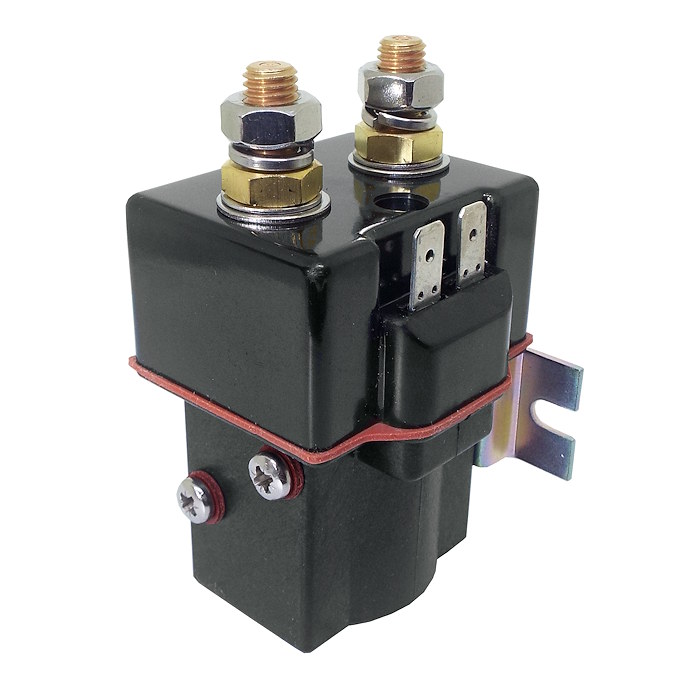

 Albright SU80-5050P IP66 protected single-acting 24 Volts DC 150 Amps solenoid contactor, continuous.

  • The SU80P is an uprated version of the SW80P Contactor designed for Interrupted and Uninterrupted loads and sealed to IP66.
  • Suitable for switching Resistive, Capacitive and Inductive loads.
  • Typical applications include, but are not limited to, electric motors, hydraulic power packs, winches, speed controllers, UPS and Power Distribution Systems.
  • Due to the sealed nature of the SU80, there is no repair kit available.

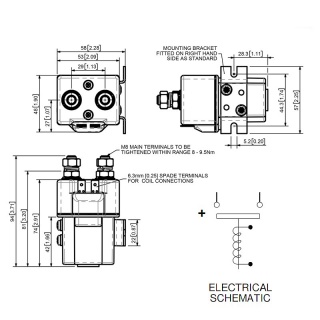

Dimensions

  • Height, including terminals and coil base cap: 94mm.
  • Cap width: 58mm.
  • Cap depth: 48mm.

About Continuous (CO.) SU80 Solenoids

 Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SU80P is an up-rated version of the SW80P designed for Interrupted and Uninterrupted applications. It is sealed to IP66 and has been designed for direct current loads in more arduous environments. It is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include, but are not limited to, electric motors, hydraulic power packs, winches and speed controllers.

 The SU80P features single-pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SU80P features an enclosed top cover and offers environmental protection to IP66. It has M8 stud main terminals and 6.3mm spade coil connections. Mounting can be vertical or horizontal. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

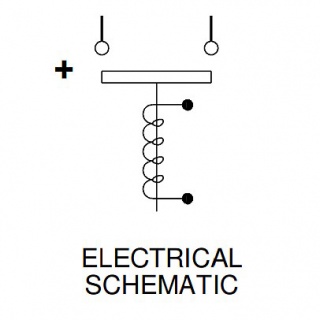

Device Type NO - SP - ST
Voltage 24V D.C.
Coil Type Continuous
Amps 150 Amps
Coil Resistance (Ohms) 52.00
Pull-In Voltage (V) 16.0 Max.
Drop Out Voltage (V) 6.0 Max.
Coil Power Dissipation (W) 11.08
Typical Pull-In Time 20ms
Typical Voltage Drop Per Pole
across New Contacts at 150A
40mV
Operating Ambient Temperature -40 to +60℃
Weight 350g
Application Interrupted Uninterrupted
Thermal Current Rating 150A 200A
Intermittent Current Rating:
30% Duty 275A 365A
40% Duty 235A 315A
50% Duty 210A 280A
60% Duty 190A 260A
70% Duty 180A 240A
