SU80-5046P Albright Single-acting 48V 150A Contactor - Continuous IP66

£46.56 Excl. VAT

(£55.87 Inc. VAT)

Earn 46 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks

Model

SU80-5046P

Bar Code

DNA

Part Number

SU80-5046P

Brand

Albright

Colour

Black

Voltage

48V DC

Amperage

150A

Material

Copper/Silver/Bakelite/Steel

Coil type

Continuous

Ship Weight

480 g

Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
Request "Ship all available" in the order comments section if you order more units than are available.

Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

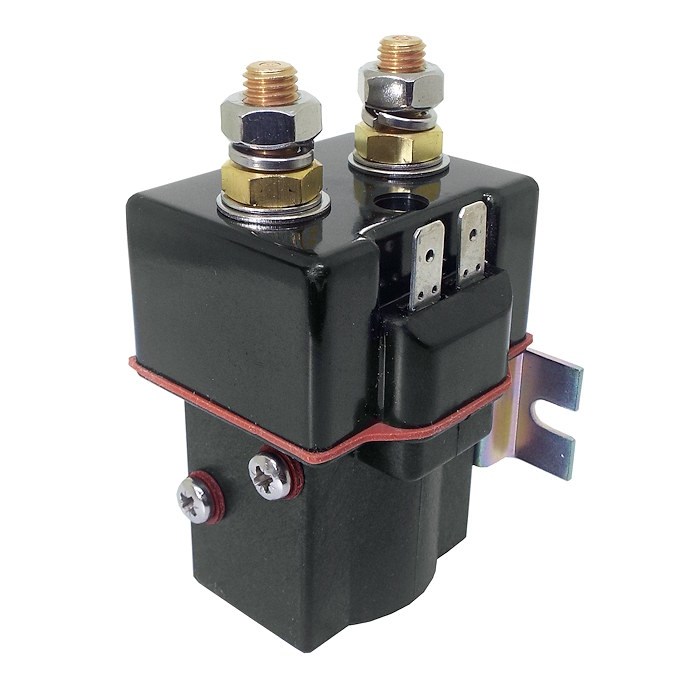

Albright SU80-5046P IP66 protected single-acting 48 Volts DC 150 Amps solenoid contactor, continuous.

The SU80P is an up-rated version of the SW80P Contactor designed for Interrupted and Uninterrupted loads and sealed to IP66.
Suitable for switching Resistive, Capacitive and Inductive loads.
Typical applications include, but are not limited to, electric motors, hydraulic power packs, winches, speed controllers, UPS and Power Distribution Systems.
Due to the sealed nature of the SU80, there is no repair kit available.

Dimensions

Height including terminals and coil base cap: 94mm.
Cap width: 58mm.
Cap depth: 48mm.

About Continuous (CO.) SU80 Solenoids

Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

The SU80P is an up-rated version of the SW80P designed for Interrupted and Uninterrupted applications. It is sealed to IP66 and has been designed for direct current loads in more arduous environments. It is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include, but are not limited to, electric motors, hydraulic power packs, winches and speed controllers.

The SU80P features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SU80P features an enclosed top cover and offers environmental protection to IP66. It has M8 stud main terminals and 6.3mm spade coil connections. Mounting can be vertical or horizontal, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type	SPST Solenoid
Voltage	48V D.C.
Coil Type	Continuous
Amps	150 Amps
Coil Resistance (Ohms)	212.00
Pull-In Voltage (V)	32.0 Maximum
Drop Out Voltage (V)	12.0 Maximum
Coil Power Dissipation (W)	10.87
Typical Pull-In Time	20ms
Typical Voltage Drop Per Pole across New Contacts at 150A	40mV
Operating Ambient Temperature	-40 to +60℃
Weight	350g
Application	Interrupted	Uninterrupted
Thermal Current Rating	150A	200A
Intermittent Current Rating:
30% Duty	275A	365A
40% Duty	235A	315A
50% Duty	210A	280A
60% Duty	190A	260A
70% Duty	180A	240A
