SU80-5144P Albright Single-acting 24V 150A Contactor - Intermittent IP66
Weight: 350 g
Model: SU80-5144P
Bar Code: DNA
Part Number: SU80-5144P
Brand: Albright
Colour Black
Voltage 24V DC
Amperage 150A
Material Copper/Silver/Bakelite/Steel
Coil type Intermittent
| Pre-order and back-ordering is available with a current 9 to 12 weeks despatch. Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements. |

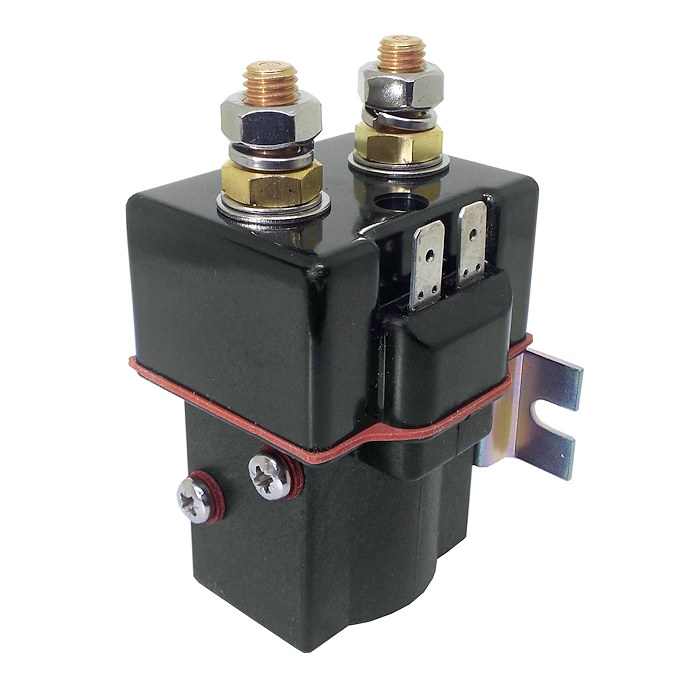

Albright SU80-5144P 24Vdc 150 Amps single-acting contactor protected to IP66, intermittent.
- The SU80P is an up-rated version of the SW80P Contactor designed for Interrupted and Uninterrupted loads and sealed to IP66.
- Suitable for switching Resistive, Capacitive and Inductive loads.
- Typical applications include, but are not limited to, electric motors, hydraulic power packs, winches, speed controllers, UPS and Power Distribution Systems.
- Due to the sealed nature of the SU80, there is no repair kit available.
Dimensions
- Height, including terminals and coil base cap: 94mm.
- Cap width: 58mm.
- Cap depth: 48mm.
About Intermittent (Int.) SU80 Solenoids
Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles; they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.
The SU80P is an up-rated version of the SW80P designed for Interrupted and Uninterrupted applications. It is sealed to IP66 and has been designed for direct current loads in more arduous environments. It is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include, but are not limited to, electric motors, hydraulic power packs, winches and speed controllers.
The SU80P features single-pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SU80P features an enclosed top cover and offers environmental protection to IP66. It has M8 stud main terminals and 6.3mm spade coil connections. Mounting can be vertical or horizontal. When vertical, the M8 contact studs should point upwards.
| Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance). |
| Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance). |
Specifications
| Device Type | NO - SP - ST |
| Voltage | 24V D.C. |
| Coil Type | Intermittent |
| Amps | 150 Amps |
| Coil Resistance (Ohms) | 29.00 |
| Pull-In Voltage (V) | 15.0 Max. |
| Drop Out Voltage (V) | 6.0 Max. |
| Coil Power Dissipation (W) | 19.86 |
| Typical Pull-In Time | 20ms |
Typical Voltage Drop Per Pole
across New Contacts at 150A | 40mV |
| Operating Ambient Temperature | -40 to +60℃ |
| Weight | 350g |
| Application | Interrupted | Uninterrupted |
| Thermal Current Rating | 150A | 200A |
| Intermittent Current Rating: |
| 30% Duty | 275A | 365A |
| 40% Duty | 235A | 315A |
| 50% Duty | 210A | 280A |
| 60% Duty | 190A | 260A |
| 70% Duty | 180A | 240A |
