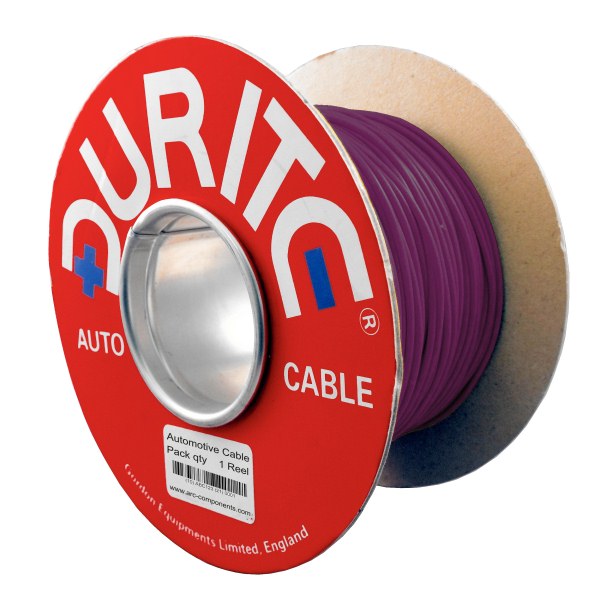

0-931-06 100m x 0.75mm˛ Purple 14A Single-core Thin Wall Auto Electric Cable
Weight: 920 g
Model: 0-931-06
Bar Code: 5056119131413
Part Number: 0-931-06
Brand: Durite
Colour Purple
Voltage 12V/24V/36V/48V DC
Amperage 14A
Material Copper/PVC
Durite 14A Purple automotive "Thin Wall" cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- 0.75mm² (19 AWG) Purple.
- 14 Amps single-core automotive cable and vehicle wiring.
- 24 copper strands at 0.20mm.
- Outside diameter: 1.9mm.
- Manufactured to ISO 6722-1:2011.
- Roll length: 100 Metres.
About the 0-931-06 0.75mm² Purple Thin Wall Electric Cable
Arc Components Limited presents the 0-931-06, Durite's light-duty 14A Purple automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 0.75mm² (19 AWG) and features 24 strands of 0.20mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 1.9mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 14 Amps.
The Durite 0-931-06 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.
Specifications
| Type | Single-core thin wall cable |
| Current Rating | 14 Amps |
| Insulation Colour | Purple |
| Wire | 24/0.20mm copper |
| Cross-section | 0.75mm² (19AWG) |
| Voltage | 60 Volts DC Max. |
| Resistance | 24.7mΩ/m at 20℃ |
| Insulation | Hard-grade PVC, which offers good resistance to abrasion and cut-through. |
| Overall Diameter | 1.9mm |
| Temperature | Minus 40 to +105℃
(120℃ intermittent) |
| Length of Cable | 100 Metres |
| Approvals | ISO6722-1:2011 |
| Weight | 920g |
