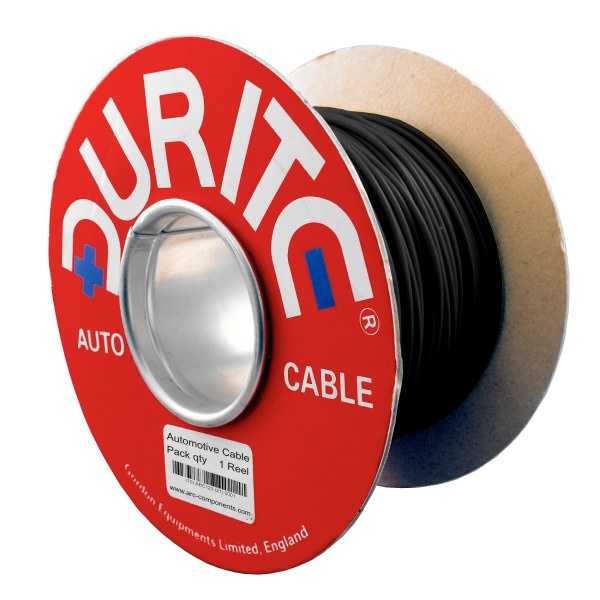

0-935-01 30m x 3.00mm² Black 33A Single-core Thin Wall Auto Electric Cable

£26.17  Excl. VAT
  (£31.40 Inc. VAT)
RRP:  £29.40  Excl. VAT
Initial Savings:  £3.23
Earn 26 Loyalty Points
Available


Weight:  1.03 kg





Model:  0-935-01
Bar Code:  5056119132175
Part Number:  0-935-01
Brand:  Durite
Colour:  Black
Voltage:  12V/24V/36V/48V DC
Amperage:  33A
Material:  Copper/PVC


Durite 33 Amps single-core Black PVC thin wall automotive cable.

  • 3.00mm² (12AWG) Black.
  • 33A single-core automotive cable and vehicle wiring.
  • 44 copper strands at 0.30mm.
  • Outside diameter: 3.4mm.
  • Manufactured to ISO 6722-1:2011.
  • Roll length 30m.

About the 0-935-01 3.00mm² Black Thin Wall Electric Cable

 Arc Components Limited presents the 0-935-01 Durite 33A Black automotive "Thin Wall" cable, which is ideal for your vehicle's medium-duty connections close to the battery source and additional electrical equipment with a medium load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 6mm² and features 44 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 3.4mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including 6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 33 Amps.

 Used as a Negative (-) conductor on auto electrical equipment and wiring looms.

Specifications

Type Single-core thin wall cable
Current Rating 33 Amps
Insulation Colour Black
Wire 44/0.30mm copper
Cross-section 3.0mm² (12 AWG)
Voltage 60 Volts DC Max.
Resistance 6.0mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   3.4mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 30 Metres
Approvals ISO6722-1:2011
Weight 1.03Kg




Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.
