Durite 50 Amps Black single-core PVC thin wall automotive cable.
- 6.00mm² (10AWG) Black.
- 50A single-core automotive cable and vehicle wiring.
- 84 strands at 0.30mm.
- Outside diameter: 4.3mm.
- To ISO 6722-1:2011.
- Roll length 30m.
About the 0-937-01 6.00mm² Black Thin Wall Electric Cable
Arc Components Limited presents the 0-937-01 Durite 50A Black automotive "Thin Wall" cable, which is ideal for your vehicle's medium-duty connections close to the battery source, like some light load starter motors, alternators and additional electrical equipment with a medium load requirement.

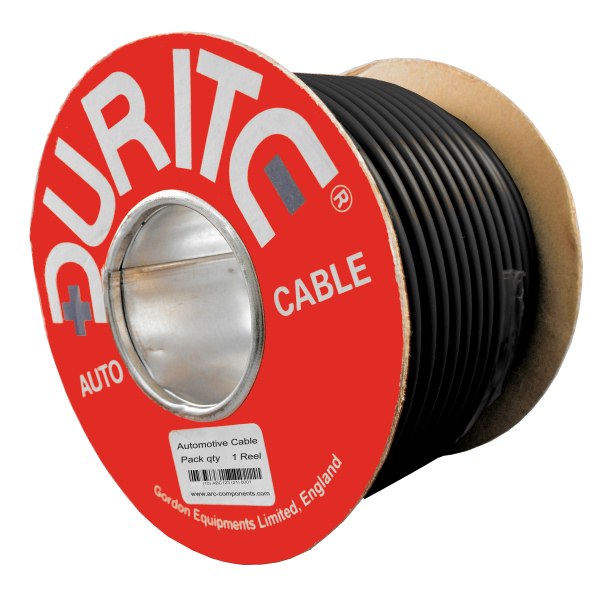

This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 6mm² and features 84 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 4.3mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including 6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for current loads to a maximum of 50 Amps, continuous.
Used as a Negative (-) conductor on auto electrical equipment and wiring looms.
Specifications
Type | Single-core thin wall cable |
Current Rating | 50 Amps |
Insulation Colour | Black |
Wire | 84/0.30mm copper |
Cross-section | 6.0mm² (10 AWG) |
Voltage | 60 Volts DC maximum |
Resistance | 3.14mΩ/m at 20℃ |
Insulation | Hard-grade PVC offers good resistance to abrasion and cut-through. |

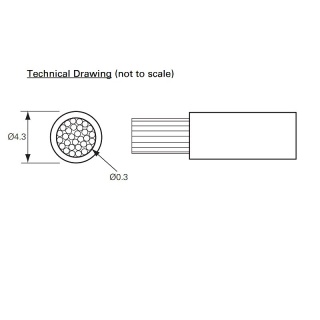

Overall Diameter | 4.3mm |
Temperature | Minus 40 to +105℃ (120℃ intermittent) |
Length of Cable | 30 Metres |
Approvals | ISO6722-1:2011 |
Weight | 1.83Kg |
