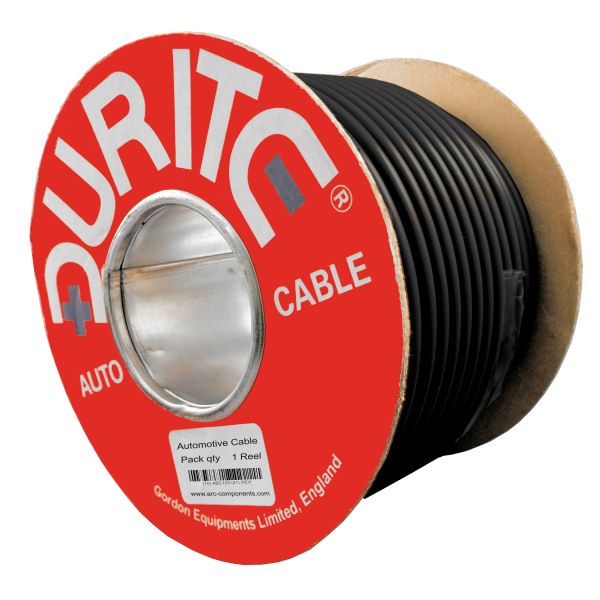

0-939-01 30m x 7.00mm˛ Black 57A Single-core Thin Wall Auto Electrical Cable

£53.51  Excl. VAT
  (£64.21 Inc. VAT)
RRP:  £60.12  Excl. VAT
Initial Savings:  £6.61
Earn 53 Loyalty Points
Available


Weight:  2.29 kg


Model:  0-939-01
Bar Code:  5056119132298
Part Number:  0-939-01
Brand:  Durite
Colour  Black
Amperage  57A
Material  Copper/PVC


 Single core PVC thin wall automotive cable.

  • Roll length 30m.
  • 7.00mm² black.
  • 57A automotive single-core cable.
  • Outside diameter: 5.1mm.
  • Outside diameter: 5.1mm.
  • To ISO 6722-1:2011.

About The 7mm² Black Thin Wall Electric Cable

 30 Metre reel of medium to heavier duty 57A black thin wall automotive cable. The 7mm² is ideal for vehicle wiring requiring a maximum load of 57 Amps continuous. Used as a negative conductor on auto electrical equipment and wiring looms.

Specifications

Type Single core thin wall cable
Current Rating 57 Amps
Insulation Colour Black
Wire 97/0.30mm copper
Cross section 7.0mm²
Voltage 60 Volts DC maximum
Resistance 2.79mΩ/m at 20℃
Insulation Hard grade PVC offering good resistance to abrasion and cut through.
Overall Diameter   5.1mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 30 Metres
Approvals ISO6722-1:2011
Weight 2.29Kg
