0-938-01 30m x 8.50mm˛ Black 63A Single-core Thin Wall Auto Electrical Cable

£60.82  Excl. VAT
  (£72.98 Inc. VAT)
RRP:  £68.34  Excl. VAT
Initial Savings:  £7.52
Earn 60 Loyalty Points
Available


Weight:  2.77 kg


Model:  0-938-01
Bar Code:  5056119132267
Part Number:  0-938-01
Brand:  Durite
Colour  Black
Voltage  12V/24V/36V/48V DC
Amperage  63A
Material  Copper/PVC


 Durite 63 Amps single-core PVC thin wall automotive cable.

  • 8.5mm² (8AWG) Black.
  • 63A single-core automotive cable and vehicle wiring.
  • 120 strands at 0.30mm copper wire.
  • Outside diameter: 5.6mm.
  • Manufactured to ISO6722-1:2011.
  • Roll length 30m.

About the 0-938-01 8.50mm² Black Thin Wall Electric Cable

 Arc Components Limited presents the 0-938-01 Durite 63A Black automotive "Thin Wall" cable, which is ideal for your vehicle battery connections close to the battery source like starter motors, alternators and additional electrical equipment with a high-than-average load requirement.

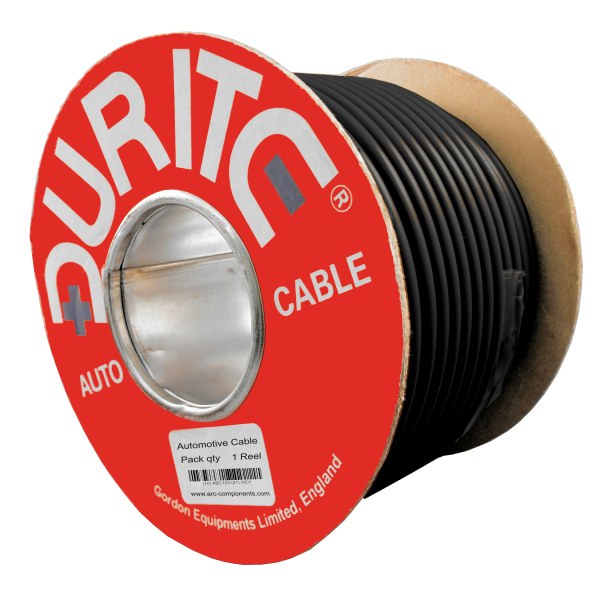

 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 8.5mm² and features 120 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 5.6mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including 6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for high-amperage heavy current loads to a maximum load of 63 Amps continuous.

 Used as a Negative (-) conductor on auto electrical equipment and wiring looms.

Specifications

Type Single-core thin wall cable
Current Rating 63 Amps
Insulation Colour Black
Wire 120/0.30mm copper
Cross-section 8.5mm² (8 AWG)
Voltage 60 Volts DC maximum
Resistance 2.2mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   5.6mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 30 Metres
Approvals ISO6722-1:2011
Weight 2.77Kg
