0-936-01 30m x 4.50mm² Black 42A Single-core Thin Wall Auto Electrical Cable

0-936-01 30m x 4.50mm² Black 42A Single-core Thin Wall Auto Electrical Cable
0-936-01 30m x 4.50mm² Black 42A Single-core Thin Wall Auto Electrical Cable
£37.11 Excl. VAT
RRP £43.48 Excl. VAT
Initial Savings
£6.37
(£44.53 Inc. VAT)
Earn 37 Loyalty Points

Available
Model
0-936-01
Bar Code
5056119132205
Part Number
0-936-01
Brand
Durite
Colour
Black
Voltage
12V/24V/36V/48V DC
Amperage
42A
Material
Copper/PVC
Weight
1.49 kg


 Durite 42 Amps single-core Black PVC thin wall automotive cable.

  • 4.50mm² (11AWG) Black.
  • 42A single-core automotive cable and vehicle wiring.

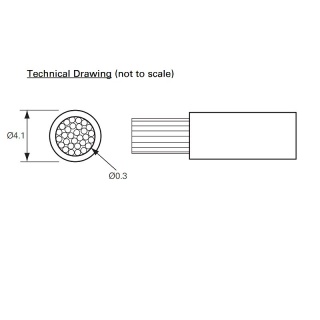

  • 65 copper strands at 0.30mm.
  • Outside diameter: 4.1mm.
  • To ISO 6722-1:2011.
  • Roll length 30m.

About the 0-936-01 4.50mm² Black Thin Wall Electric Cable

 Arc Components Limited presents the 0-936-01 Durite 42A Black automotive "Thin Wall" cable, which is ideal for your vehicle's medium-duty connections close to the battery source and additional electrical equipment with a medium load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 6mm² and features 65 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 4.1mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including 6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 42 Amps.

 Used as a Negative (-) conductor on auto electrical equipment and wiring looms.

Specifications

Type
Single-core thin wall cable
Current Rating
42 Amps
Insulation Colour
Black
Wire
65/0.30mm copper
Cross-section
4.5mm² (11 AWG)
Voltage
60 Volts DC Max.
Resistance
4.06mΩ/m at 20℃
Insulation
Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter
4.1mm
Length of Cable
30 Metres
Temperature
Minus 40 to +105℃ (120℃ intermittent)
Approvals
ISO6722-1:2011
Weight
1.49Kg




Delivery

UK Mainland Postage Offer

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.

 We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use FedEx, UPS, Parcel Force, and other major courier services for larger and more valuable consignments.


International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

Also Bought

0-936-05 30m x 4.50mm² Red 42A Single-core Thin Wall Auto Electrical Cable

Durite 42 Amps colour-coded Red single-core PVC thin wall automotive cable 65 strands at 0.30mm copper wiring to ISO 6722-1:2011.

Re: 0-936-05
£37.11
Excl VAT
Available

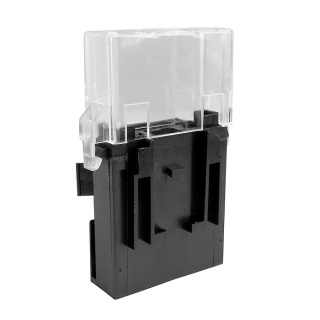

0-377-00 Durite MAXI Blade Fuse Single Fuse Box

Single MAXI blade fuse holder. Supplied with 2 sizes of terminals and a bracket. Can be clipped together to form a multiple fuse block.

Re: 0-377-00
£8.06
Excl VAT
Available

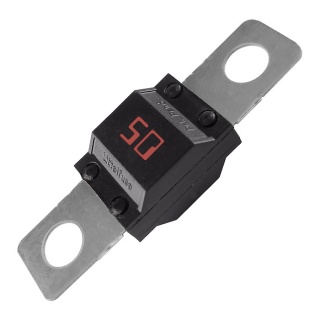

0-378-15 Red MIDI Link Fuse - 50A
