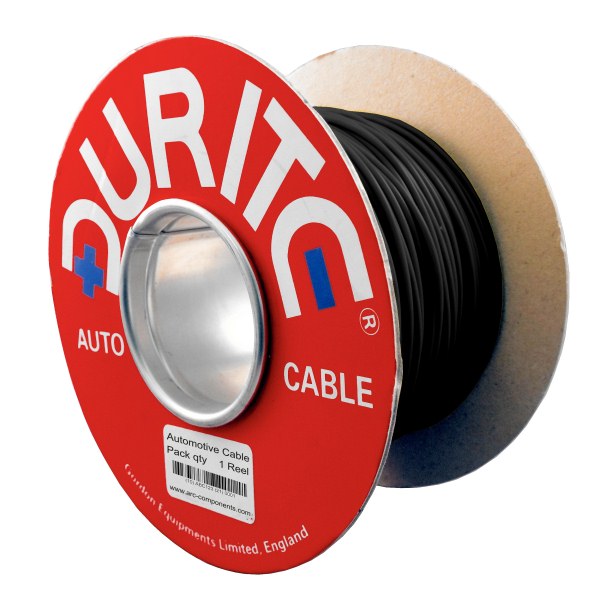

0-934-01 50m x 2.50mm˛ Black 29A Single-core Thin Wall Auto Electric Cable

£33.04  Excl. VAT
  (£39.65 Inc. VAT)
RRP:  £37.12  Excl. VAT
Initial Savings:  £4.08
Earn 33 Loyalty Points
Available


Weight:  1.32 kg





Model:  0-934-01
Bar Code:  5056119132144
Part Number:  0-934-01
Brand:  Durite
Colour:  Black
Voltage:  12V/24V/36V/48V DC
Amperage:  29A
Material:  Copper/PVC


 Durite 29 Amps single-core auto cables with a Black PVC thin wall.

  • 2.50mm² (13AWG) Black.
  • 29A single-core automotive electric cable and vehicle wiring.
  • 35 copper strands at 0.30mm.
  • Outside diameter: 3.0mm.
  • Manufactured to ISO 6722-1:2011.
  • Roll length 50m.

About the 0-934-01 2.50mm² Black Thin Wall Electric Cable

 Arc Components Limited presents the 0-934-01, Durite's light to medium-duty 29A Black automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low/medium load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 2.5mm² and features 35 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 3.0mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including 6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 29 Amps.

 Used as a Negative (-) conductor on auto electrical equipment and wiring looms.

Specifications

Type Single-core thin wall cable
Current Rating 29 Amps
Insulation Colour Black
Wire 35/0.30mm copper
Cross-section 2.5mm² (13 AWG)
Voltage 60 Volts DC maximum
Resistance 7.6mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   3mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 50 Metres
Approvals ISO6722-1:2011
Weight 1.32Kg
