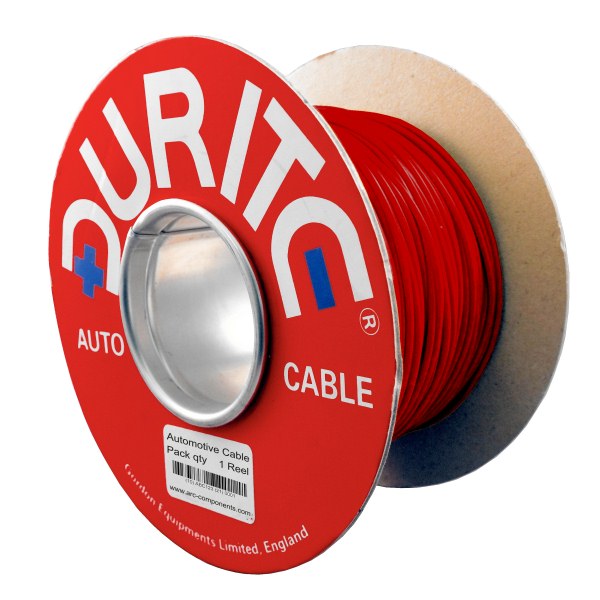

0-934-05 50m x 2.50mm˛ Red 29A Single-core Thin Wall Auto Electric Cable

£33.04  Excl. VAT
  (£39.65 Inc. VAT)
RRP:  £37.12  Excl. VAT
Initial Savings:  £4.08
Earn 33 Loyalty Points
Available


Weight:  1.77 kg


Model:  0-934-05
Bar Code:  5056119132168
Part Number:  0-934-05
Brand:  Durite
Colour  Red
Amperage  29A
Material  Copper/PVC


 Single core PVC thin wall 29A automotive cable.

  • Roll length 50m.
  • 2.50mm² red.
  • 29A automotive single-core electric cable.
  • 35 strands 0.30mm.
  • Outside diameter: 3.0mm.
  • To ISO 6722-1:2011.

About The 2.5mm² Red Thin Wall Electric Cable

 50 Metre reel of light to medium duty thin wall 29A red automotive cable. Used for light to medium current loads, the 2.5mm² is ideal for vehicle wiring requiring a maximum load of 29 Amps continuous. Used as a positive conductor on auto electrical equipment and wiring looms.

Specifications

Type Single core thin wall cable
Current Rating 29 Amps
Insulation Colour Red
Wire 35/0.30mm copper
Cross section 2.5mm²
Voltage 60 Volts DC maximum
Resistance 7.6mΩ/m at 20℃
Insulation Hard grade PVC offering good resistance to abrasion and cut through.
Overall Diameter   3mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 50 Metres
Approvals ISO6722-1:2011
Weight 1.32Kg
