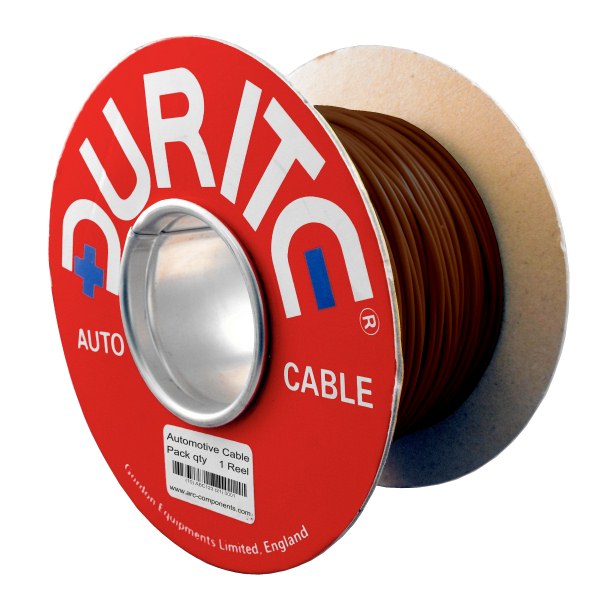

0-934-03 50m x 2.50mm˛ Brown 29A Single Core Thin Wall Auto Electric Cable

£25.35  Excl. VAT
  (£30.42 Inc. VAT)
RRP:  £30.54
Savings before Cart:  £5.19
Earn 25 Loyalty Points
Available


Weight:  1.77kg


Model:  0-934-03
Bar Code:  5056119132151
Part Number:  0-934-03
Brand:  Durite
Colour:  Brown
Amperage:  29A
Material:  Copper/PVC


 Single core PVC thin wall 29A automotive cable.

  • Reel length: 50m.
  • 2.50mm² brown.
  • 29A automotive single core electric cable.
  • 35 strand 0.30mm.
  • Outside diameter: 3.0mm.
  • To ISO 6722-1:2011.

About the 2.5mm² Brown Thin Wall Electric Cable

 50 metre rolls of light to medium duty thin wall 29A brown automotive cable. Used for light to medium current loads, the 2.5mm² is ideal for vehicle wiring requiring a maximum load of 29 amps continuous. Used as a conductor on auto electrical equipment and wiring looms.

Specifications

Type Single core thin wall cable
Current Rating 29 amp
Insulation colour Brown
Wire 35/0.30mm copper
Cross section 2.5mm²
Voltage 60 volt DC maximum
Resistance 7.6mΩ/m at 20℃
Insulation Hard grade PVC offering good resistance to abrasion and cut through.
Overall diameter   3mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of cable 50 Metres
Approvals ISO6722-1:2011
Weight 1.32Kg
Free UK Mainland Postage and Packaging

Delivery Options Free UK Mainland delivery discount is selectable on your shopping cart page; a £50.00 minimum order value is applicable for the Free Delivery Service, with a variable low Standard Rate shipping charge for smaller consignments.
 Despatch methods for Standard and Free UK Delivery Service include light, low-value orders despatched via Royal Mail standard or recorded delivery, with large and high-value orders despatched via UPS and Parcel Force courier services.

International Consignments

 International orders and consignments require the exact Card Holder Address (Invoicee) as the first address for payment processing. PO Box addresses are not acceptable as delivery addresses by some couriers.
 Export orders will only be accepted when placed online.
