0-940-01 30m x 10.00mm² Black 70A Single-core Thin Wall Auto Electrical Cable

0-940-01 30m x 10.00mm² Black 70A Single-core Thin Wall Auto Electrical Cable
0-940-01 30m x 10.00mm² Black 70A Single-core Thin Wall Auto Electrical Cable
£76.98 Excl. VAT
RRP £90.18 Excl. VAT
(£92.38 Inc. VAT)
Initial Savings
£13.20
Earn 76 Loyalty Points
(1 Review)

Available
Model
0-940-01
Bar Code
5056119132328
Part Number
0-940-01
Brand
Durite
Colour
Black
Voltage
12V/24V/36V/48V DC
Amperage
70A
Material
Copper/PVC
 Intrastat HS Code  8544499390
Ship Weight
3.20 kg


 Durite Black single-core PVC Thin Wall 70A automotive cable.

  • 10.00mm² (7AWG) with a Black PVC sheath.
  • 70 Amps single-core automotive cable and vehicle wiring.
  • 80 strands 0.40mm.
  • Outside diameter: 6.0mm.
  • To ISO 6722-1:2011.
  • Roll length: 30m.

About the 0-940-01 10.00mm² Black Thin Wall Electric Cable

 Arc Components Limited presents the 0-940-01 Durite 70A Black automotive "Thin Wall" cable, which is ideal for your vehicle battery connections close to the battery source like starter motors, alternators and additional electrical equipment with a high-load requirement.

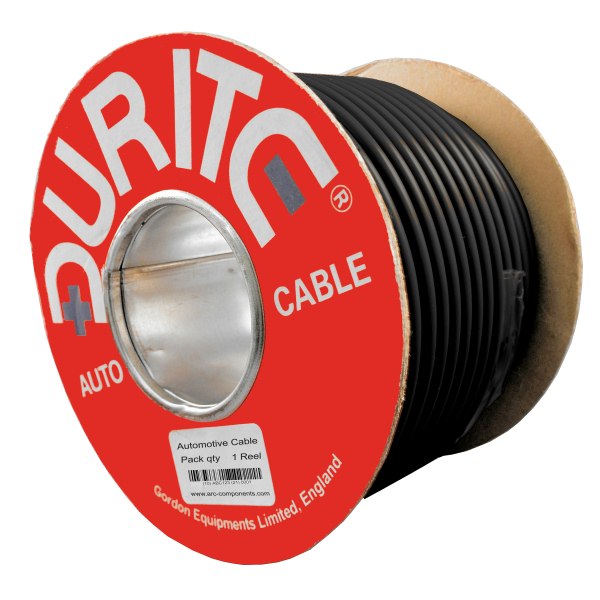

 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 10mm² and features 80 strands of 0.40mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 6mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722/4, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for high-amperage heavy current loads to a maximum load of 70 Amps continuous.

 Used as a Negative (-) conductor on auto electrical equipment and wiring looms.

Specifications

Type
Single-core thin wall cable
Current Rating
70 Amps
Insulation Colour
Black
Wire
80/0.40mm copper
Cross-section
10.0mm² (7 AWG)
Voltage
60 Volts DC Max.
Resistance
1.82mΩ/m at 20℃
Insulation
Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter
6.0mm
Length of Cable
30 Metres
Temperature
Minus 40 to +105℃ (120℃ intermittent)
Approvals
ISO6722-1:2011
Weight
3.2Kg
