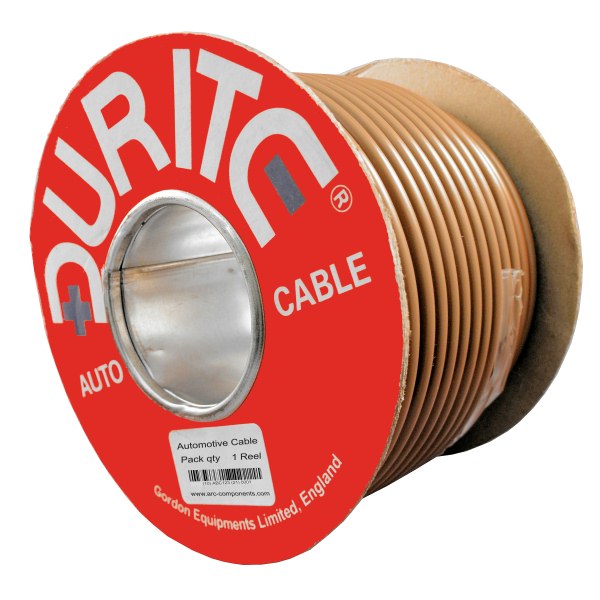

0-937-03 30m x 6.00mm˛ Brown 50A Single-core Thin Wall Auto Electrical Cable
Weight: 1.83 kg
Model: 0-937-03
Bar Code: 5056119132243
Part Number: 0-937-03
Brand: Durite
Colour Brown
Voltage 12V/24V/36V/48V DC
Amperage 50A
Material Copper/PVC
Durite 50 Amps Brown single-core PVC thin wall automotive cable.
- 6.00mm² (10AWG) Brown.
- 50A single-core automotive cable and vehicle wiring.
- 84 strands at 0.30mm.

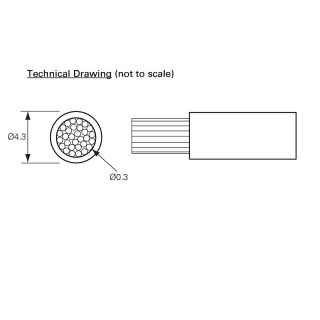

- Outside diameter: 4.3mm.
- To ISO 6722-1:2011.
- Roll length 30m.
About the 0-937-03 6.00mm² Brown Thin Wall Electric Cable
Arc Components Limited presents the 0-937-03 Durite 50A Brown automotive "Thin Wall" cable, which is ideal for your vehicle's medium-duty connections close to the battery source, like some light load starter motors, alternators and additional electrical equipment with a medium load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 6mm² and features 84 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 4.3mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including 6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for current loads to a maximum of 50 Amps, continuous.
Used as a conductor on auto electrical equipment and wiring looms.
Specifications
| Type | Single-core thin wall cable |
| Current Rating | 50 Amps |
| Insulation Colour | Brown |
| Wire | 84/0.30mm copper |
| Cross-section | 6.0mm² (10 AWG) |
| Voltage | 60 Volts DC maximum |
| Resistance | 3.14mΩ/m at 20℃ |
| Insulation | Hard-grade PVC offers good resistance to abrasion and cut-through. |
| Overall Diameter | 4.3mm |
| Temperature | Minus 40 to +105℃
(120℃ intermittent) |
| Length of Cable | 30 Metres |
| Approvals | ISO6722-1:2011 |
| Weight | 1.83Kg |
