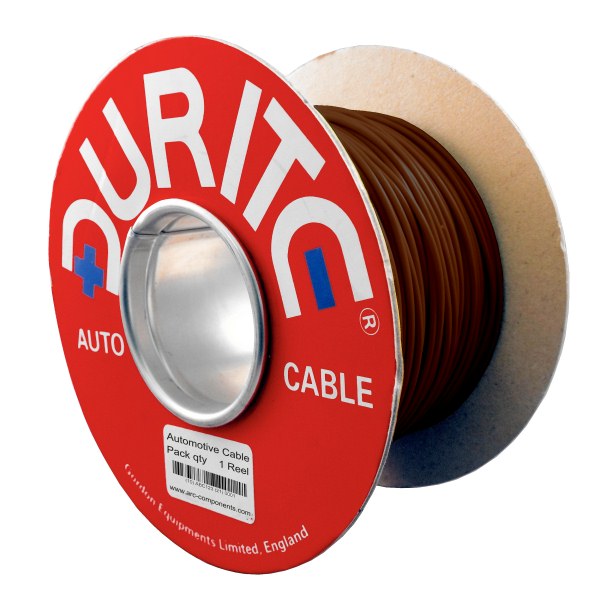

0-935-03 30m x 3.00mm˛ Brown 33A Single Core Thin Wall Auto Electric Cable

£23.42  Excl. VAT
  (£28.10 Inc. VAT)
RRP:  £26.92
Savings before Cart:  £3.50
Earn 23 Loyalty Points
Available


Weight:  1.50 kg


Model:  0-935-03
Bar Code:  5056119132182
Part Number:  0-935-03
Brand:  Durite
Colour:  Brown
Amperage:  33A
Material:  Copper/PVC


 Single core PVC thin wall 33A automotive cable.

  • Reel length: 30m.
  • 3.00mm² brown.
  • 33A automotive single core electric cable.
  • 44 strand 0.30mm.
  • Outside diameter: 3.4mm.
  • To ISO 6722-1:2011.

About the 3mm² Brown Thin Wall Electric Cable

 30 metre rolls of medium duty thin wall 33A brown automotive cable. Used for medium current loads, the 3.0mm² is ideal for vehicle wiring requiring a maximum load of 33 amps continuous. Used as a conductor on auto electrical equipment and wiring looms.

Specifications

TypeSingle core thin wall cable
Current Rating33 amp
Insulation colourBrown
Wire44/0.30mm copper
Cross section3.0mm²
Voltage60 Volts DC maximum
Resistance6.0mΩ/m at 20℃
InsulationHard grade PVC offering good resistance to abrasion and cut through.
Overall diameter  3.4mm
TemperatureMinus 40 to +105℃
(120℃ intermittent)
Length of cable30 Metres
ApprovalsISO6722-1:2011
Weight1.03Kg
