0-947-01 30m x 6.00mm² Black 42A Auto Single-core Cable

£55.56 Excl. VAT

RRP ~~£63.14~~ Excl. VAT

Initial Savings

£7.58

(£66.67 Inc. VAT)

Earn 55 Loyalty Points

Available

Model

0-947-01

Bar Code

5056119133264

Part Number

0-947-01

Brand

Durite

Colour

Black

Voltage

12V/24V DC

Amperage

42A

Material

Copper/PVC

Weight

2.54 kg

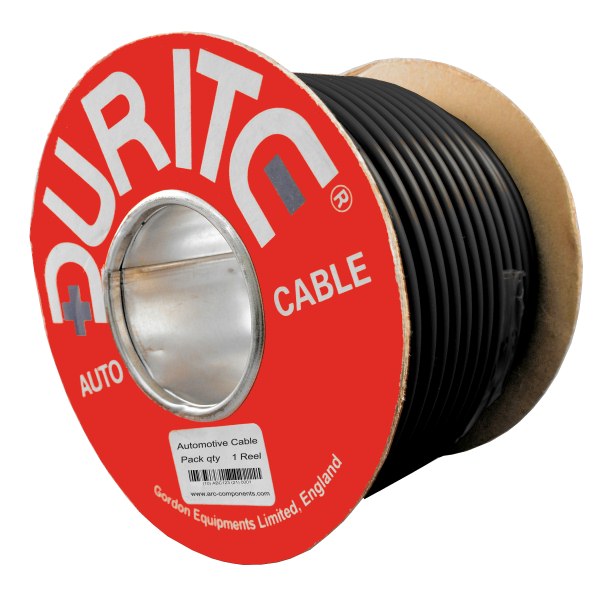

Durite 42A Black standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

6.00mm² (10AWG) Black.
42 Amps single-core automotive cable and vehicle wiring.
84 copper strands at 0.30mm.
Outside diameter: 5.9mm.
Manufactured to BS6862-1:1971.
Roll length: 30m

About the 0-947-01 6mm² Black PVC Electric Cable

Arc Components Limited presents the 0-947-01, Durite's medium-duty 42A Black automotive cable, ideal for your vehicle's connection to electrical equipment with a medium load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 6.0mm² (10 AWG) and features 84 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 5.9mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 42 Amps.

The Durite 0-947-01 is commonly used as a Negative (-) conductor wire on medium amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type

Single-core standard automotive wiring

Current Rating

42 Amps

Insulation Colour

Black

Wire

84/0.30mm copper

Cross-section

6.00mm² (10 AWG)

Voltage

For 12 and 24 Volts DC systems (100 Volts DC Max.)

Resistance

3.1mΩ/m at 20 degrees C

Insulation

Hard-grade PVC offers good resistance to abrasion and cut-through.

Overall Diameter

5.9mm

Temperature

Minus 30 to +70 degrees C

Length of Cable

30 Metres

Approvals

BS 6862-1:1971

Weight

2.54Kg
