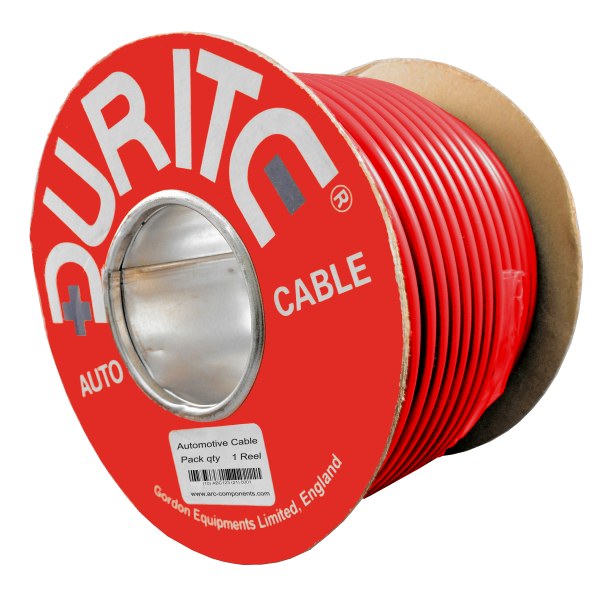

0-947-05 30m x 6.00mm² Red 42A Auto Single-core Cable

£53.01  Excl. VAT
  (£63.61 Inc. VAT)
RRP:  £59.56  Excl. VAT
Initial Savings:  £6.55
Earn 53 Loyalty Points
Available


Weight:  2.54 kg





Model:  0-947-05
Bar Code:  5056119133288
Part Number:  0-947-05
Brand:  Durite
Colour:  Red
Voltage:  12V/24V DC
Amperage:  42A
Material:  Copper/PVC


 Durite 42A Red standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

  • 6.00mm² (10AWG) Red.
  • 42 Amps single-core automotive cable and vehicle wiring.

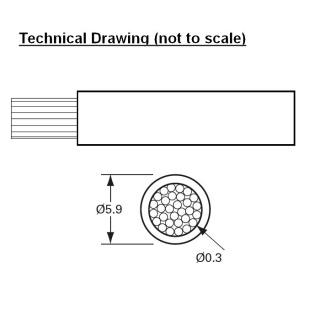

  • 84 copper strands at 0.30mm.
  • Outside diameter: 5.9mm.
  • Manufactured to BS6862-1:1971.
  • Roll length: 30m

About the 0-947-05 6mm² Red PVC Electric Cable

 Arc Components Limited presents the 0-947-05, Durite's medium-duty 42A Red automotive cable, ideal for your vehicle's connection to electrical equipment with a medium load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 6.0mm² (10 AWG) and features 84 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 5.9mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 42 Amps.

 The Durite 0-947-05 is commonly used as a Positive (+) conductor wire on medium amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type Single-core standard automotive wiring
Current Rating 42 Amps
Insulation Colour Red
Wire 84/0.30mm copper
Cross-section 6.00mm² (10 AWG)
Voltage For 12 and 24 Volts DC systems (100 Volts DC Max.)
Resistance 3.1mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   5.9mm
Temperature Minus 30 to +70℃
Length of Cable 30 Metres
Approvals BS 6862-1:1971
Weight 2.54kg







Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

0-947-03 30m x 6.00mm² Brown 42A Auto Single-core Cable
0-947-03 30m x 6.00mm² Brown 42A Auto Single-core Cable

Durite 6mm² (10 AWG) colour-coded Brown PVC sheathed standard automotive cable. 42A vehicle wiring (84 strands 0.30mm) to BS6862-1:1971.


Available
 Reference: 0-947-03 £59.56   £53.01
0-933-01 100m x 2.00mm² Black 25A Auto Single-core Cable
0-933-01 100m x 2.00mm² Black 25A Auto Single-core Cable

Durite 25 Amps single-core Black PVC thin wall automotive electric cable. 2.0mm² (14 AWG) vehicle wiring to ISO 6722/4.


Available
 Reference: 0-933-01 £58.66   £52.21
0-933-05 100m x 2.00mm² Red 25A Auto Single-core Cable
0-933-05 100m x 2.00mm² Red 25A Auto Single-core Cable

Durite 25 Amps single-core Red PVC thin wall automotive electric cable. 2.0mm² (14 AWG) vehicle wiring to ISO 6722/4.


Available
 Reference: 0-933-05 £58.66   £52.21


Related Products

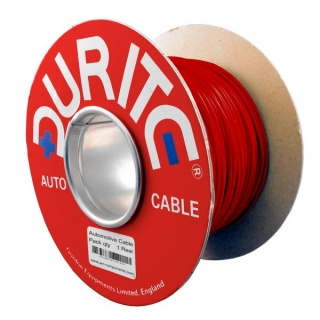

0-935-05 30m x 3.00mm˛ Red 33A Single-core Thin Wall Auto Electric Cable
