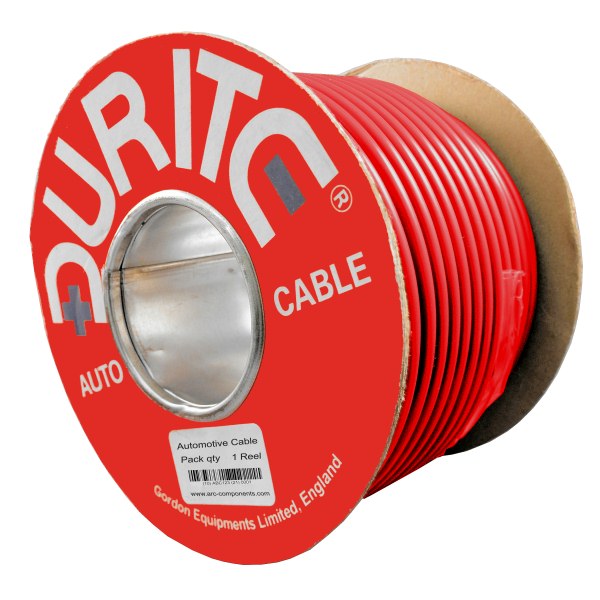

0-939-05 30m x 7.00mm² Red 57A Single-core Thin Wall Auto Electrical Cable

£53.51  Excl. VAT
  (£64.21 Inc. VAT)
RRP:  £60.12  Excl. VAT
Initial Savings:  £6.61
Earn 53 Loyalty Points
Available


Weight:  2.29 kg





Model:  0-939-05
Bar Code:  5056119132311
Part Number:  0-939-05
Brand:  Durite
Colour  Red
Voltage  12V/24V/36V/48V DC
Amperage  57A
Material  Copper/PVC


 Durite 57A single-core Red PVC thin wall automotive cable.

  • 7.00mm² (9AWG) Red.
  • 57 Amps single-core automotive cable and vehicle wiring.
  • 97 strands at 0.30mm copper wire.
  • Outside diameter: 5.1mm.
  • Manufactured to ISO 6722-1:2011.
  • Roll length: 30m.

About the 0-939-05 7.00mm² Red Thin Wall Electric Cable

 Arc Components Limited presents the 0-939-05 Durite 57A Red automotive "Thin Wall" cable, which is ideal for your vehicle's medium-duty connections close to the battery source, like starter motors, alternators and additional electrical equipment with a high-than-average load requirement.
 This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 7mm² and features 97 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 5.1mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including 6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for high-amperage heavy current loads to a maximum load of 57 Amps continuous.

 Used as a Positive (+) conductor on auto electrical equipment and wiring looms.

Specifications

Type Single-core thin wall cable
Current Rating 57 Amps
Insulation Colour Red
Wire 97/0.30mm copper
Cross-section 7.0mm² (9 AWG)
Voltage 60 Volts DC maximum
Resistance 2.79mΩ/m at 20℃
Insulation Hard-grade PVC offers good resistance to abrasion and cut-through.
Overall Diameter   5.1mm
Temperature Minus 40 to +105℃
(120℃ intermittent)
Length of Cable 30 Metres
Approvals ISO6722-1:2011
Weight 2.29Kg
