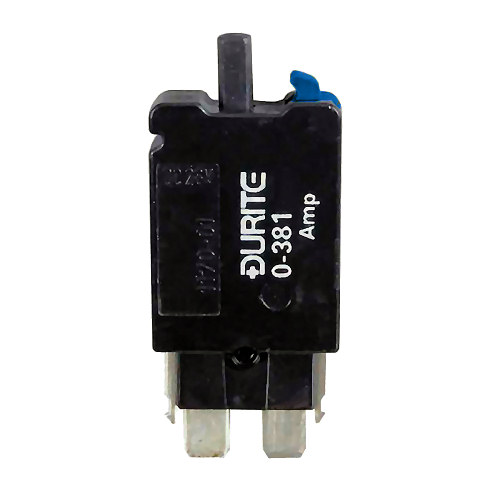

0-381-15 Durite Blade Fuse Replacement Circuit Breaker 15A

£27.32  Excl. VAT
  (£32.78 Inc. VAT)
RRP:  £30.70  Excl. VAT
Initial Savings:  £3.38
Earn 27 Loyalty Points
Available


Weight:  30 g





Model:  0-381-15
Bar Code:  5056119111484
Part Number:  0-381-15
Brand:  Durite
Colour  Black/Blue
Voltage  12V/24V DC
Amperage  15A
Material  Thermoplastic/Brass/Copper


 Durite 15 Amps blade fuse replacement circuit breaker. Manual reset surge protection for automotive vehicles.

  • Colour: Blue Button.
  • Current Rating:15A for 12-24Vdc systems.
  • Voltage Rating: 28Vdc Maximum.
  • Thermal bimetallic with manual reset and manual trip.
  • Will replace standard blade fuses in many fuse holders and boxes.
  • Pack Quantity: 1 Piece.

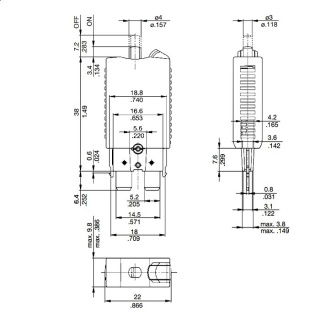

Dimensions

  • Length: 18.8mm
  • Width: 9.8mm
  • Height: 51.4mm (including blades and trip extended)

About The 15A Blue Manual Reset And Manual Trip Circuit Breaker

 The Durite compact single pole thermal circuit breaker with push-to-reset, tease-free, trip-free, snap action mechanism and separate (blue colour coded) manual release. The Unit combines a full-feature circuit breaker protection and convenience along with a low cost of ownership benefits. They are fitted with standard fuse-sized blade terminals for plug-in mounting.

Specifications

Type Manual Trip & Reset Circuit Breaker
Voltage 12-24 Volts DC (maximum 28 Volts DC)
Number of poles Single pole
Current ratings 15A
Colour code Blue button
Vibration 10g (57-500 Hz)
Degree of protection Operating area IP40, terminal area IP00
Ambient temperature Minus 40℃ to +60℃
Humidity 95% RH
Nett Weight 13g




Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.


Related Products

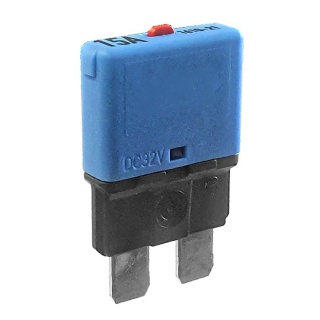

0-380-15 Blade Fuse Replacement Circuit Breaker Blue 15A
0-380-15 Blade Fuse Replacement Circuit Breaker Blue 15A

Durite Blue 15 Amps circuit breaker for 12-24Vdc systems. The unit will replace standard blade fuses in many fuse holders and boxes.


Available
 Reference: 0-380-15 £21.40   £19.05

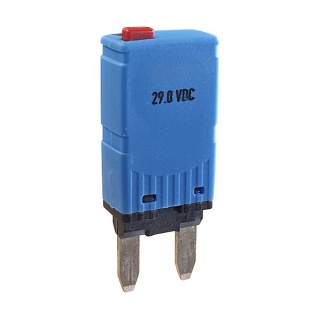

0-380-65 15A Blue Mini Blade Fuse Replacement Circuit Breaker
0-380-65 15A Blue Mini Blade Fuse Replacement Circuit Breaker

Durite Blue coloured 15 Amps circuit breaker for 12-24Vdc systems. The unit will replace MINI blade fuses in many fuse holders and boxes.


Available
 Reference: 0-380-65 £17.10   £15.22
0-381-06 Durite Blade Fuse Replacement Circuit Breaker 6A
0-381-06 Durite Blade Fuse Replacement Circuit Breaker 6A

Durite Green 6 Amps circuit breaker for 12-24Vdc systems. The unit has a manual reset and manual trip and will replace some standard blade fuses.


Available
 Reference: 0-381-06 £30.72   £27.34
0-381-08 Durite Blade Fuse Replacement Circuit Breaker 8A
0-381-08 Durite Blade Fuse Replacement Circuit Breaker 8A

Durite Tan 8 Amps circuit breaker for 12-24Vdc systems. The unit has a manual reset and manual trip and will replace some standard blade fuses.


Available
 Reference: 0-381-08 £30.72   £27.34
0-381-10 Durite Blade Fuse Replacement Circuit Breaker 10A
0-381-10 Durite Blade Fuse Replacement Circuit Breaker 10A

Durite Red 10 Amps circuit breaker for 12-24Vdc systems. The unit has a manual reset and manual trip and will replace some standard blade fuses.


Available
 Reference: 0-381-10 £30.70   £27.32

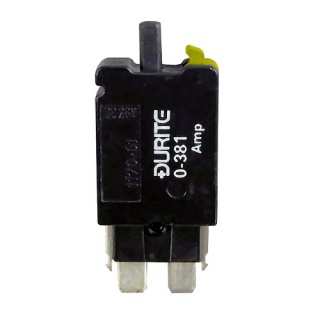

0-381-20 Durite Blade Fuse Replacement Circuit Breaker 20A
