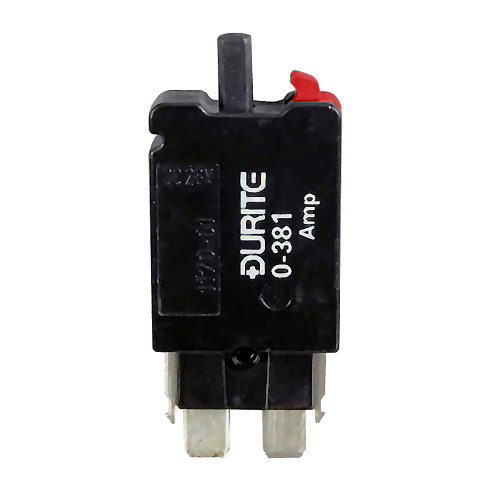

0-381-10 Durite Blade Fuse Replacement Circuit Breaker 10A

£25.44  Excl. VAT
  (£30.53 Inc. VAT)
RRP:  £29.24  Excl. VAT
Savings before Cart:  £3.80
Earn 25 Loyalty Points
Available


Weight:  30 g


Model:  0-381-10
Bar Code:  5056119111477
Part Number:  0-381-10
Brand:  Durite
Colour:  Black/Red
Voltage:  12V/24V DC
Amperage:  10A
Material:  Thermoplastic/Brass/Copper


 Durite 10 Amps blade fuse replacement circuit breaker. Manual reset surge protection for automotive vehicles.

  • Colour: Red Button.
  • Current Rating:10A for 12-24Vdc systems.
  • Voltage Rating: 28Vdc Maximum.
  • Thermal bimetallic with manual reset and manual trip.
  • Will replace standard blade fuses in many fuse holders and boxes.
  • Pack Quantity: 1 Piece.

Dimensions

  • Length: 18.8mm
  • Width: 9.8mm
  • Height: 51.4mm (including blades and trip extended)

About The 10A Red Manual Reset And Manual Trip Circuit Breaker

 The Durite compact single pole thermal circuit breaker with push-to-reset, tease-free, trip-free, snap action mechanism and separate (red colour coded) manual release. The Unit combines a full-feature circuit breaker protection and convenience along with a low cost of ownership benefits. They are fitted with standard fuse-sized blade terminals for plug-in mounting.

Specifications

Type Manual Trip & Reset Circuit Breaker
Voltage 12-24 Volts DC (maximum 28 Volts DC)
Number of poles Single pole
Current ratings 10A
Colour code Red button
Vibration 10g (57-500 Hz)
Degree of protection Operating area IP40, terminal area IP00
Ambient temperature Minus 40℃ to +60℃
Humidity 95% RH
Nett Weight 13g
Free UK Mainland Postage and Packaging

Delivery Options Free UK Mainland delivery discount is selectable on your shopping cart page; a £50.00 minimum order value is applicable for the Free Delivery Service, with a variable low Standard Rate shipping charge for smaller consignments.
 Despatch methods for Standard and Free UK Delivery Service include light, low-value orders despatched via Royal Mail standard or recorded delivery, with large and high-value orders despatched via UPS and Parcel Force courier services.

International Consignments

 International orders and consignments require the exact Card Holder Address (Invoicee) as the first address for payment processing. PO Box addresses are not acceptable as delivery addresses by some couriers.
 Export orders will only be accepted when placed online.
