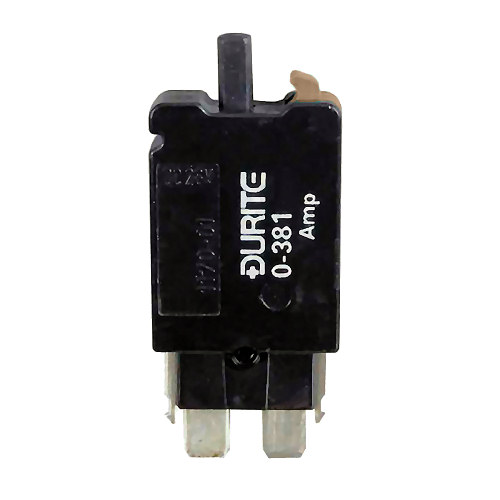

0-381-08 Durite Blade Fuse Replacement Circuit Breaker 8A

£27.34  Excl. VAT
  (£32.81 Inc. VAT)
RRP:  £30.72  Excl. VAT
Initial Savings:  £3.38
Earn 27 Loyalty Points
Available


Weight:  30 g


Model:  0-381-08
Bar Code:  5056119111460
Part Number:  0-381-08
Brand:  Durite
Colour  Black/Tan
Voltage  12V/24V DC
Amperage  8A
Material  Thermoplastic/Brass/Copper


 Durite 8 Amps blade fuse replacement circuit breaker. Manual reset surge protection for automotive vehicles.

  • Colour: Tan Button.
  • Current Rating:8A for 12-24Vdc systems.
  • Voltage Rating: 28Vdc Maximum.
  • Thermal bimetallic with manual reset and manual trip.
  • Will replace standard blade fuses in many fuse holders and boxes.
  • Pack Quantity: 1 Piece.

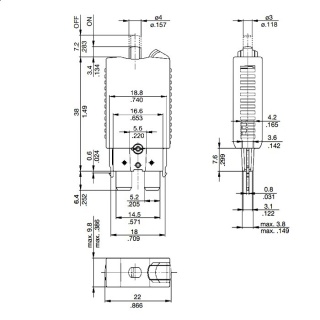

Dimensions

  • Length: 18.8mm
  • Width: 9.8mm
  • Height: 51.4mm (including blades and trip extended)

About The 8A Tan Manual Reset And Manual Trip Circuit Breaker

 The Durite compact single pole thermal circuit breaker with push-to-reset, tease-free, trip-free, snap action mechanism and separate (tan colour coded) manual release. The Unit combines a full-feature circuit breaker protection and convenience along with a low cost of ownership benefits. They are fitted with standard fuse-sized blade terminals for plug-in mounting.

Specifications

Type Manual Trip & Reset Circuit Breaker
Voltage 12-24 Volts DC (maximum 28 Volts DC)
Number of poles Single pole
Current ratings 8A
Colour code Tan button
Vibration 10g (57-500 Hz)
Degree of protection Operating area IP40, terminal area IP00
Ambient temperature Minus 40℃ to +60℃
Humidity 95% RH
Nett Weight 13g
