0-380-08 Blade Fuse Replacement Circuit Breaker Tan 8A
Weight: 30 g
Model: 0-380-08
Bar Code: 5056119111361
Part Number: 0-380-08
Brand: Durite
Colour: Tan
Voltage: 32V DC Max.
Amperage: 8A
Material: Thermoplastic/Brass/Copper

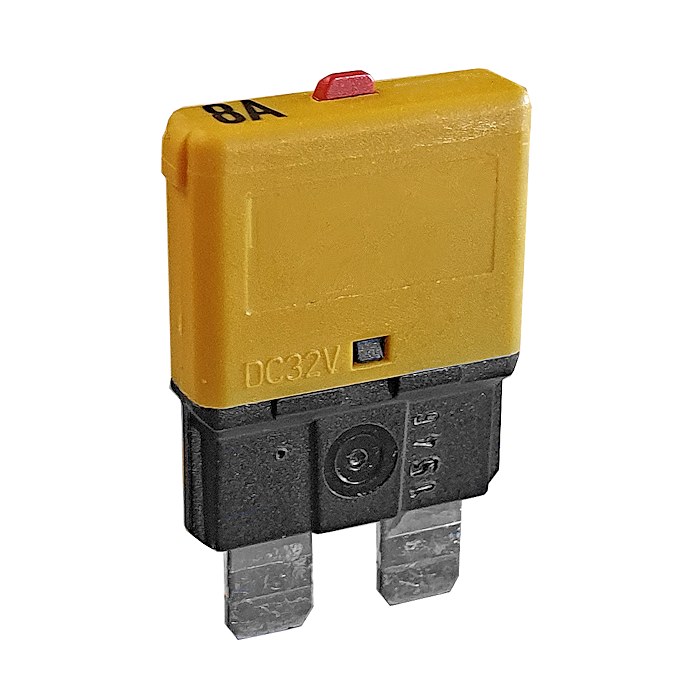

Durite tan coloured 8 Amps blade fuse replacement circuit breaker. Manual reset surge protection for automotive vehicles.
- Colour: Tan.
- Current Rating: 8A for 12-24Vdc systems.
- Voltage Rating: 32Vdc Maximum.
- Thermal bimetallic with manual reset.
- Will replace standard blade fuses in many fuse holders and boxes.
- Pack Quantity: 1 Piece.
Dimensions
- Length: 20mm
- Width: 6mm
- Height: 38mm (inc blades and trip extended)
Specifications
| Type | Manual Reset Circuit Breaker |
| Voltage | 12-24 Volts DC (maximum 32 Volts DC) |
| Voltage drop | Less than 150mV |
| Current ratings | 8A |
| Colour code | Tan |
| Vibration | 10g (57-500 Hz) |
| Degree of protection | Operating area IP30, terminal area IP00 |
| Operating temperature | Minus 40℃ to +85℃ |
| Humidity | 95% RH |
| Nett Weight | 5g |
