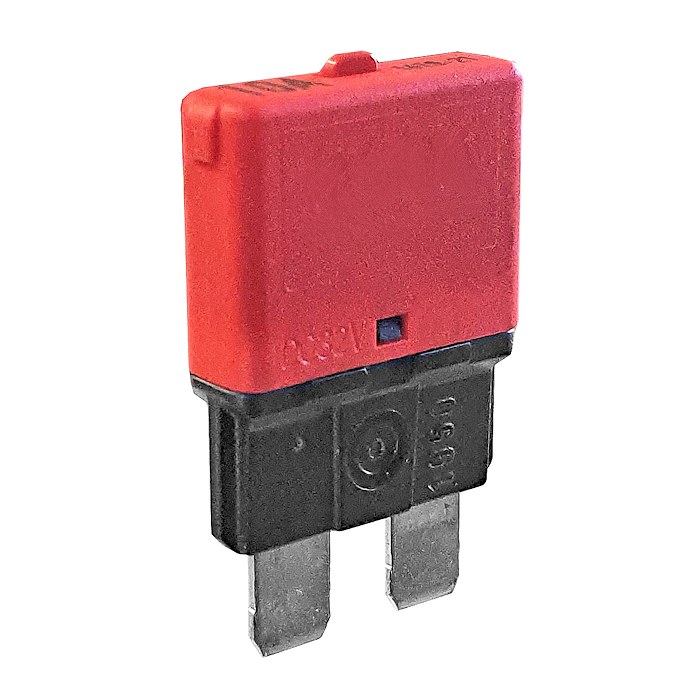

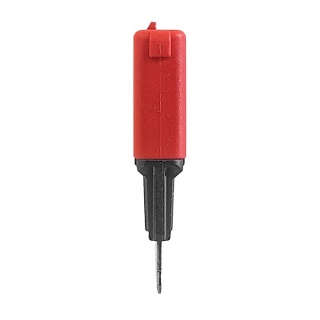

0-380-10 Blade Fuse Replacement Circuit Breaker Red 10A

£19.22  Excl. VAT
  (£23.06 Inc. VAT)
RRP:  £21.60  Excl. VAT
Initial Savings:  £2.38
Earn 19 Loyalty Points
Available


Weight:  30 g


Model:  0-380-10
Bar Code:  5056119111378
Part Number:  0-380-10
Brand:  Durite
Colour  Red
Voltage  12V/24V DC
Amperage  10A
Material  Thermoplastic/Brass/Copper


 Durite red coloured 10 Amps Standard blade fuse replacement circuit breaker. Manual reset surge protection for automotive vehicles.

  • Colour: Red.
  • Current Rating: 10A for 12-24Vdc systems.
  • Voltage Rating: 32Vdc Maximum.
  • Thermal bimetallic with manual reset.
  • Will replace STANDARD blade fuses in many fuse holders and boxes.
  • Pack Quantity: 1 Piece.

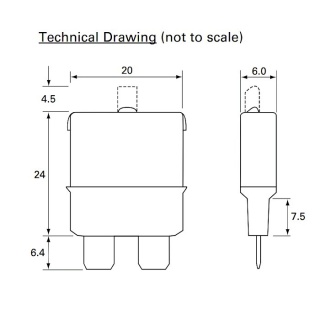

Dimensions

  • Length: 13.3mm
  • Width: 7.0mm
  • Height: 36.0mm (inc blades and trip extended)

Specifications

Type Manual Reset Circuit Breaker
Voltage 12-24 Volts DC (maximum 32 Volts DC)
Voltage drop Less than 150mV
Current ratings 10A
Colour code Red
Vibration 10g (57-500 Hz)
Degree of protection Operating area IP30, terminal area IP00
Operating temperature Minus 40℃ to +85℃
Humidity 95% RH
Nett Weight 5g
