10-way Standard Blade Busbar Fuse Box with Cover | Re: 0-234-40

£13.42  Excl. VAT
  (£16.10 Inc. VAT)
RRP:  £15.08  Excl. VAT
Initial Savings:  £1.66
Earn 13 Loyalty Points
Available


Weight:  120 g





Model:  0-234-40
Bar Code:  5056119106749
Part Number:  0-234-40
Brand:  Durite
Colour  Black/Clear
Voltage  12V/24V DC
Amperage  100A
Material  Plastic/Brass/Steel

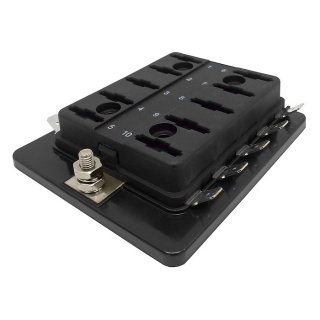

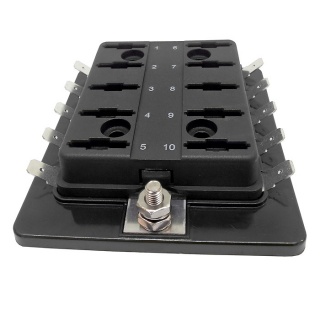

 Durite standard blade or spade fuse ten-way fusebox with a common busbar input.

  • Holder for the standard range of automotive blade fuses.
  • 10-way fuse holder with ten fuse positions and a common busbar for input.
  • Busbar: M5 stud.
  • 6.3mm blade terminal outputs.
  • Voltage rated to 32Vdc.
  • Maximum busbar load: 100A.

Dimensions

  • Height: 36mm.
  • Base width: 85mm.
  • Base length: 95mm.

About The 10-way Standard Spade Fuse Box

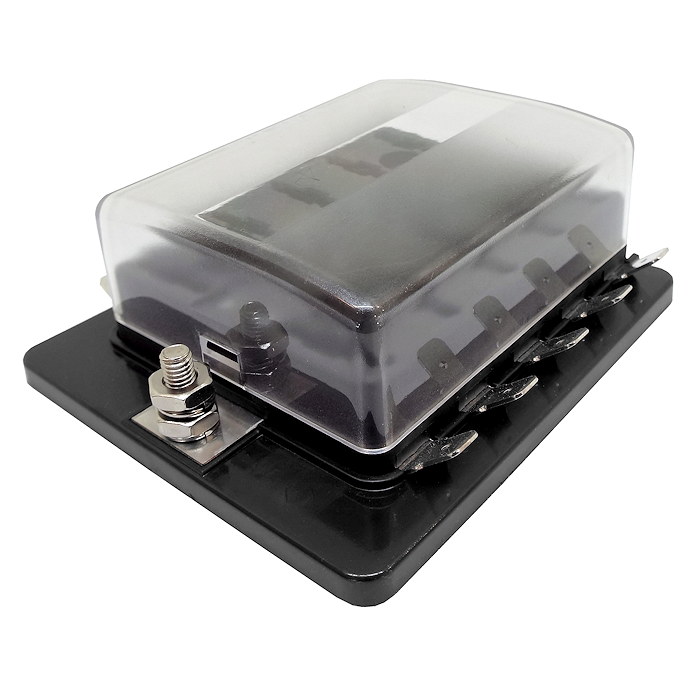

 Durite's modern style ten-way standard fuse carrier comes with a clip-on PVC cover for easy inspection. The blade fuse holder is designed to pick up the common input and then fuse protect components via the 6.3mm spade connection.





Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

0-003-40 Pack of 25 11mm Diameter Terminal Covers
0-003-40 Pack of 25 11mm Diameter Terminal Covers

Durite soft PVC terminal covers. 6.0mm diameter cable entry with a 11.0mm main terminal hole diameter.


Available
 Reference: 0-003-40 £24.48   £21.79
0-130-75 Durite 10.5V Heater Glow Plug M10 x 1.25 Pre-Heat 6 Sec.
0-130-75 Durite 10.5V Heater Glow Plug M10 x 1.25 Pre-Heat 6 Sec.

0-130-75 Durite glow plug nut: 12mm, thread: M10 x 1.25, pre-heat: 6 seconds, volts: 10.5, overall length: 81mm and element length: 22.5mm.


Available
 Reference: 0-130-75 £16.22   £14.44
0-289-53 Durite 13 Pin Trailer Socket Bracket Assembly
0-289-53 Durite 13 Pin Trailer Socket Bracket Assembly

Durite 13-Pin trailer socket and bracket assembly. Complete with 1M of 13-Core cable and a pre-wired 13-Pin plastic socket (part number: 0-695-19).


Available
 Reference: 0-289-53 £61.38   £54.63


Related Products
10-way MINI Blade Busbar Fuse Box | Re: 0-234-30
10-way MINI Blade Busbar Fuse Box | Re: 0-234-30

Durite 10-way fusebox for the automotive MINI blade fuses. The vehicle fuse holder or carrier has ten separate fuse positions and a common busbar.


Available
 Reference: 0-234-30 £9.72   £8.65

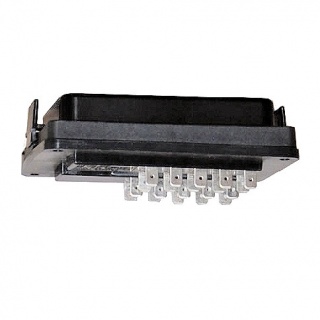

10-way Standard Blade Fuse Box with LED Indicators | Re: 0-234-60
