6-way Standard Blade Fuse Box with Cover | Re: 0-234-16

£5.61  Excl. VAT
  (£6.73 Inc. VAT)
RRP:  £6.30  Excl. VAT
Initial Savings:  £0.69
Earn 5 Loyalty Points
Available


Weight:  50 g


Model:  0-234-16
Bar Code:  5056119106664
Part Number:  0-234-16
Brand:  Durite
Colour  Black/Clear
Voltage  12V/24V DC
Amperage  40A
Material  Brass/Plastic

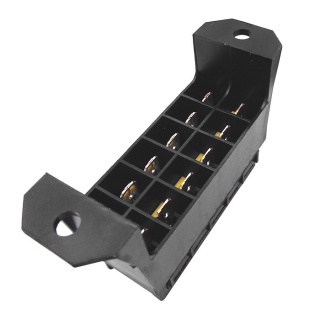

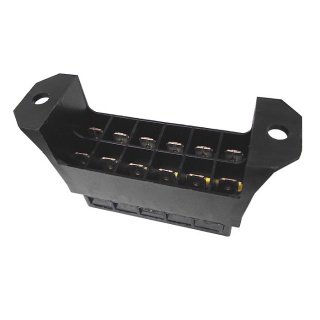

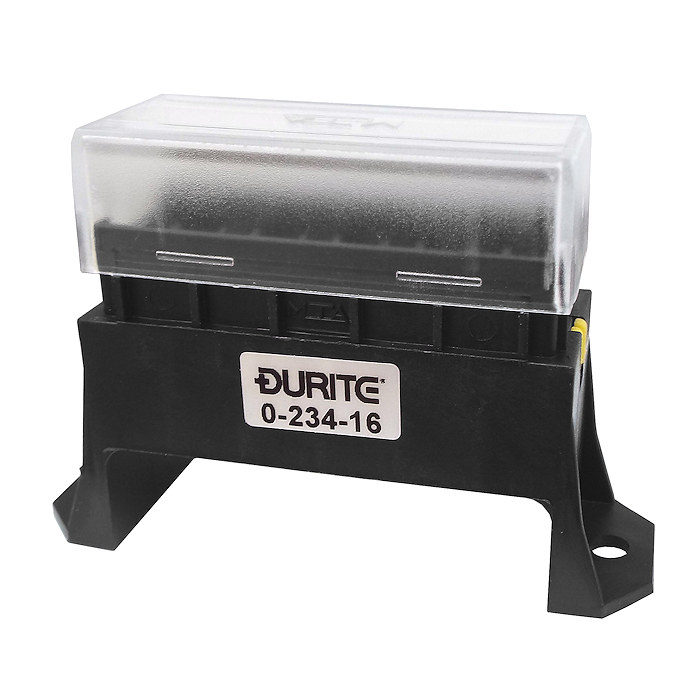

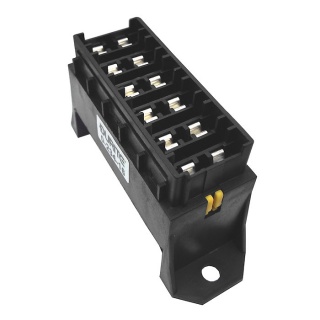

 Durite six-way base-entry standard automotive blade fuse box.

  • 6.3mm blade terminal connections.
  • Two-hole fixing.
  • Supplied without fuses.
  • Clear clip-off, clip-on lid.
  • Can be panel or bulkhead mounted.

Dimensions

  • Fixing holes centres: 73mm.
  • Height: 58mm.
  • Width: 26mm.

About The Standard Six Blade Fuse Holder

 The standard 6-way base-entry fuse holder stands proud of the panel when fixed to it, and allows automotive cables and vehicle wiring that is terminated with a 6.3mm female terminal, to be connected via the 6.3mm male terminal located on the underside of the fuse carrier.

 The medium-sized and most popular of the Durite automotive blade fuse family, the standard blade fuse offers circuit overload protection and has a variety of uses in a vehicle's fusebox or when used with inline holders for circuit protection.

Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

0-005-20 Pack of 50 6.30mm Female Terminal for Cable 1.00mm˛ to 2.5mm˛
0-005-20 Pack of 50 6.30mm Female Terminal for Cable 1.00mm˛ to 2.5mm˛

Pack of 6.30mm push-on uninsulated female spade terminals without locking tab. For 1.00mm² to 2.5mm² automotive cables and wiring.

Available
 Reference: 0-005-20 £6.44   £5.73

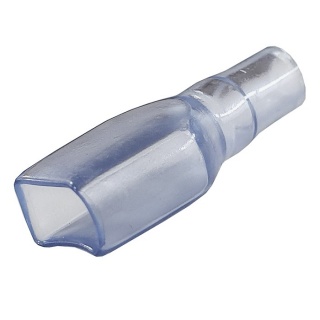

0-005-21 Pack of 50 6.30mm Clear Terminal Insulators
0-005-21 Pack of 50 6.30mm Clear Terminal Insulators

Durite soft clear 6.80mm PVC automotive terminal insulators. Protective covers for 6.3mm female push-on terminals for vehicle wiring.

Available
 Reference: 0-005-21 £5.94   £5.29

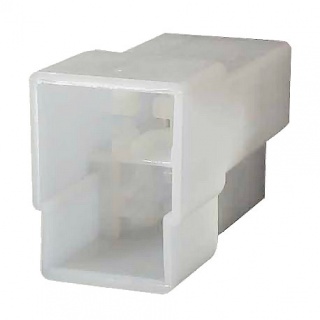

0-011-04 Pack of 5 6.3mm Male Blade Terminal Housing 3-way
0-011-04 Pack of 5 6.3mm Male Blade Terminal Housing 3-way

Durite 6.30mm 3-way standard male automotive blade or spade terminal housing. White nylon connector for brass locking terminals.

Available
 Reference: 0-011-04 £2.14   £1.90


Related Products
10-way Standard Blade Busbar Fuse Box with Cover | Re: 0-234-40
10-way Standard Blade Busbar Fuse Box with Cover | Re: 0-234-40

Durite 10-way fuse carrier for standard blade fuses. Holder for blade or spade fuses, ten fuse positions with a common busbar for input.

Available
 Reference: 0-234-40 £15.08   £13.42
16-way Standard Blade Fuse Box with Cover | Re: 0-234-66
16-way Standard Blade Fuse Box with Cover | Re: 0-234-66

Durite sixteen-way standard blade fuse block. Fuse carrier complete with cable terminals, locking tabs and protective cover.

Available
 Reference: 0-234-66 £21.58   £19.21
4-way Standard Blade Busbar Fuse Box with Cover | Re: 0-234-44
4-way Standard Blade Busbar Fuse Box with Cover | Re: 0-234-44

Durite 4-way fuse carrier for standard blade fuses. Holder for blade or spade fuses, four fuse positions with a common busbar for input.

Available
 Reference: 0-234-44 £12.00   £10.68
4-way Standard Blade Fuse Box with Cover | Re: 0-234-14
4-way Standard Blade Fuse Box with Cover | Re: 0-234-14

Durite standard blade or spade fuse box 4-way. 6.3mm blade terminal cable connections, two hole fixing and supplied without fuses.

Available
 Reference: 0-234-14 £5.00   £4.45
6-way Standard Blade Busbar Fuse Box with Cover | Re: 0-234-46
6-way Standard Blade Busbar Fuse Box with Cover | Re: 0-234-46

Durite 6-way fuse carrier for standard blade fuses. Holder for blade or spade fuses, six fuse positions with a common busbar for input.

Available
 Reference: 0-234-46 £13.72   £12.21

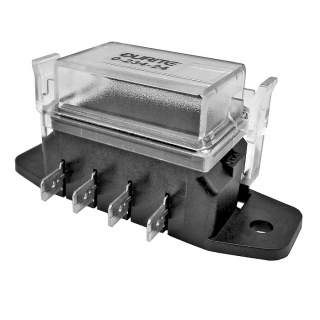

Durite 4-way Standard Blade Fuse Box with Cover | Re: 0-234-24
