16-way Standard Blade Fuse Box with Cover | Re: 0-234-66

£19.21  Excl. VAT
  (£23.05 Inc. VAT)
RRP:  £21.58  Excl. VAT
Initial Savings:  £2.37
Earn 19 Loyalty Points
Available


Weight:  180 g





Model:  0-234-66
Bar Code:  5056119139709
Part Number:  0-234-66
Brand:  Durite
Colour  Black/Clear
Voltage  12V/24V DC
Amperage  40A
Material  Plastic/Brass/Steel

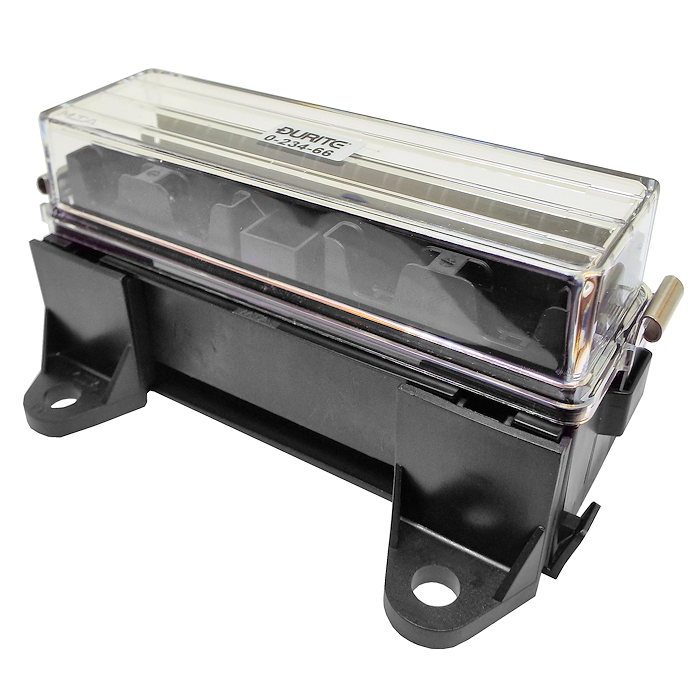

 Sixteen way, standard blade fuse panel mounted fuse box.

  • Supplied with terminals for cable connection and locking tabs.

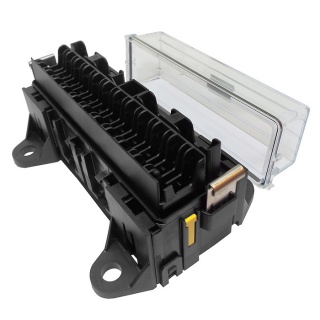

  • Clear clip off, clip on holder cover.

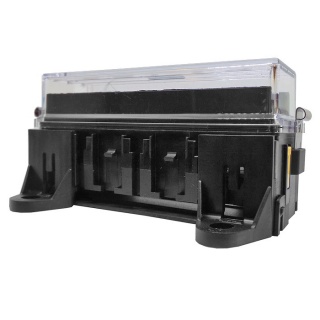

  • Four hole fixing with adjustable position legs.

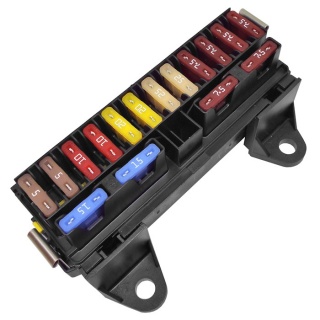

  • Supplied without fuses, image with fuses inserted is for display purpose.
  • Can be panel or bulkhead mounted.

Dimensions

  • Height including cover: 62mm.
  • Width including mounting lugs: 88mm.
  • Overall length including cover clips: 133mm.

About The Sixteen Eight Blade Fuse Holder

 The 16 way 'Panel Mount' fuse holder fits flush to the panel when fixed, with a clip on base allowing cable entry either side of the fuse carrier. The terminals supplied can be crimped onto the cable, and then fixed in place by locking plates.

 The fuse block accomodates the medium sized (standard) and most popular of the automotive blade fuse family, the standard spade fuses offer circuit load protection, and have a wide variety of fuse box and inline fuse holder solutions.





Free UK Mainland Postage and Packaging

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.
We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use UPS, Parcel Force, and other major courier services for larger and more valuable consignments.

International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

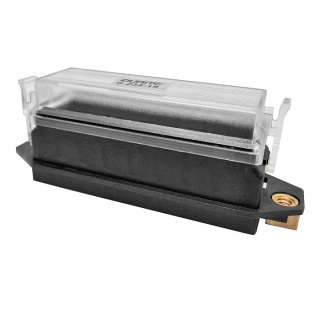

Through Panel 8-way Standard Blade Fuse Box | Re: 0-234-18
