6-way Standard Blade Busbar Fuse Box with Cover | Re: 0-234-46

£12.21  Excl. VAT
  (£14.65 Inc. VAT)
RRP:  £13.72  Excl. VAT
Initial Savings:  £1.51
Earn 12 Loyalty Points
Available


Weight:  80 g





Model:  0-234-46
Bar Code:  5056119106763
Part Number:  0-234-46
Brand:  Durite
Colour:  Black/Clear
Voltage:  12V/24V DC
Amperage:  100A
Material:  Plastic/Brass/Steel

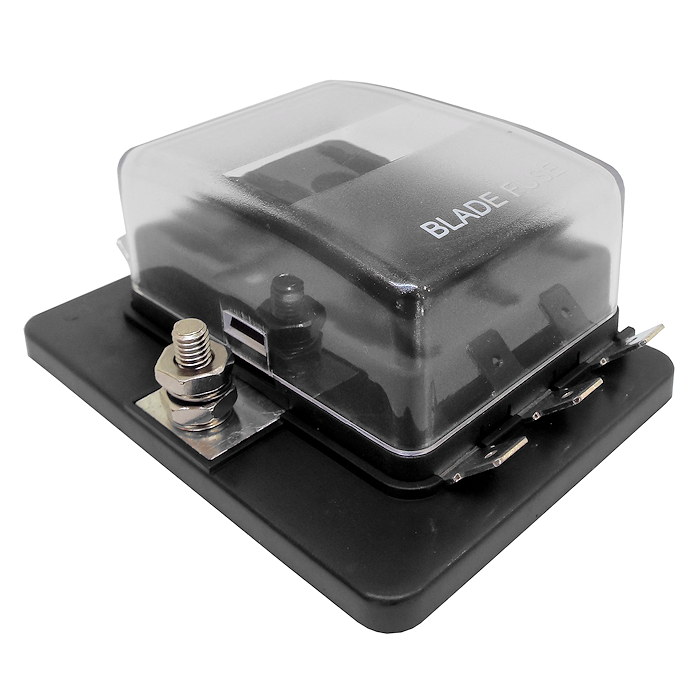

 Durite standard blade or spade fuse six-way fusebox with a common busbar input.

  • Holder for the standard range of automotive blade fuses.
  • 6-way fuse holder with six fuse positions and a common busbar for input.
  • Busbar: M5 stud.
  • 6.3mm blade terminal outputs.
  • Voltage rated to 32Vdc.
  • Maximum busbar load: 100A.

Dimensions

  • Height: 36mm.
  • Base width: 85mm.
  • Base length: 63mm.

About The 6-way Standard Spade Fuse Box

 Durite's modern style six-way standard fuse carrier comes with a clip-on PVC cover for easy inspection. The blade fuse holder is designed to pick up the common input and then "fuse protects" components via the 6.3mm spade connection.
