4-way Standard Blade Busbar Fuse Box with Cover | Re: 0-234-44

£10.68  Excl. VAT
  (£12.82 Inc. VAT)
RRP:  £12.00  Excl. VAT
Initial Savings:  £1.32
Earn 10 Loyalty Points
Available


Weight:  60 g





Model:  0-234-44
Bar Code:  5056119106756
Part Number:  0-234-44
Brand:  Durite
Colour:  Black/Clear
Voltage:  12V/24V DC
Amperage:  100A
Material:  Plastic/Brass/Steel

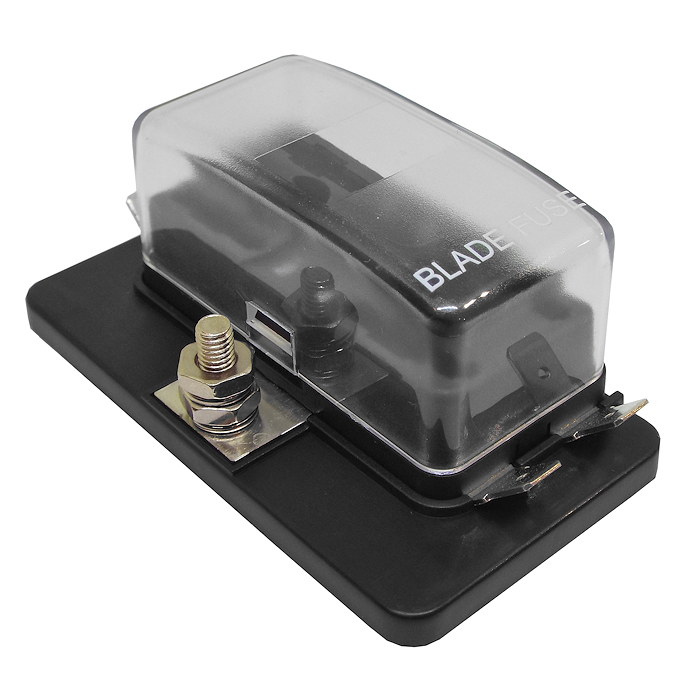

 Durite standard blade or spade fuse four-way fusebox with a common busbar input.

  • Holder for the standard range of automotive blade fuses.
  • 4-way fuse holder with four fuse positions and a common busbar for input.
  • Busbar: M5 stud.
  • 6.3mm blade terminal outputs.
  • Voltage rated to 32Vdc.
  • Maximum busbar load: 100A.

Dimensions

  • Height: 36mm.
  • Base width: 85mm.
  • Base length: 43mm.

About The 4-way Standard Spade Fuse Box

 Durite's modern style four-way standard fuse carrier comes with a clip-on PVC cover for easy inspection. The blade fuse holder is designed to pick up the common input and then "fuse protects" components via the 6.3mm spade connection.
