Through Panel 8-way Standard Blade Fuse Box | Re: 0-234-18

£10.59  Excl. VAT
  (£12.71 Inc. VAT)
RRP:  £11.90  Excl. VAT
Initial Savings:  £1.31
Earn 10 Loyalty Points
Available


Weight:  80 g





Model:  0-234-18
Bar Code:  5056119106671
Part Number:  0-234-18
Brand:  Durite
Colour:  Black/Clear
Voltage:  12V/24V DC
Amperage:  40A
Material:  Plastic/Brass/Steel

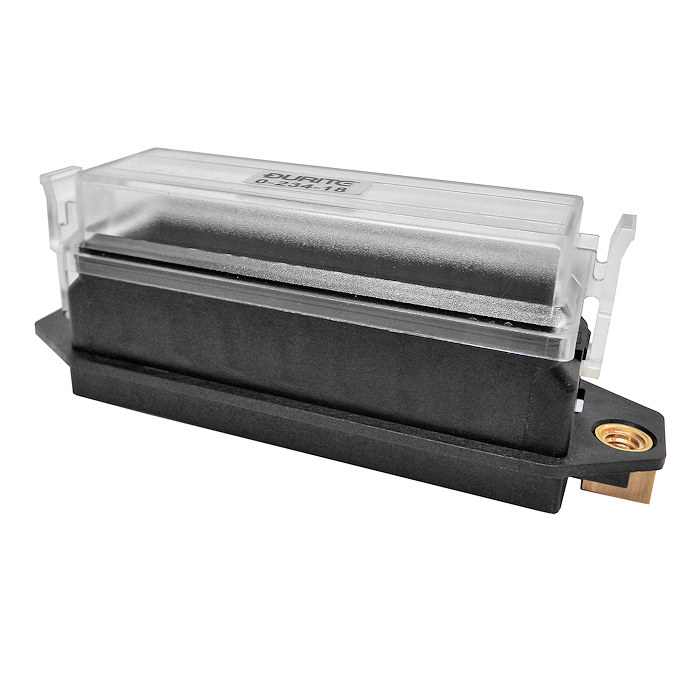

 Durite eight-way and through panel mounting standard blade fuse holder.

  • 6.3mm blade terminal connections.
  • Base entry terminal connection.
  • Supplied without fuses.
  • Clear clip-off, clip-on box cover.
  • For mounting through a panel.
  • M5 captive fixing threads.

Dimensions

  • Overall length including fixing points: 115mm.
  • Width: 38mm.
  • Through panel: 28mm by 88mm.
  • Total height: 43mm.

About The Eight Way Through Panel Blade Fuse Holder

 The 8-way base entry through panel fuse holder fits into panels with the cover and access to fuses proud at the front. Cable entry fixing is achieved with 6.3mm terminals via the rear of the panel, to keep the wiring tidy and out of sight.

 The medium-sized and most popular of the Durite automotive blade fuse family, the standard blade fuse offers circuit overload protection and has a variety of uses in a vehicle's fusebox or when used with inline holders for circuit protection.
